HT7022A-1
Overview

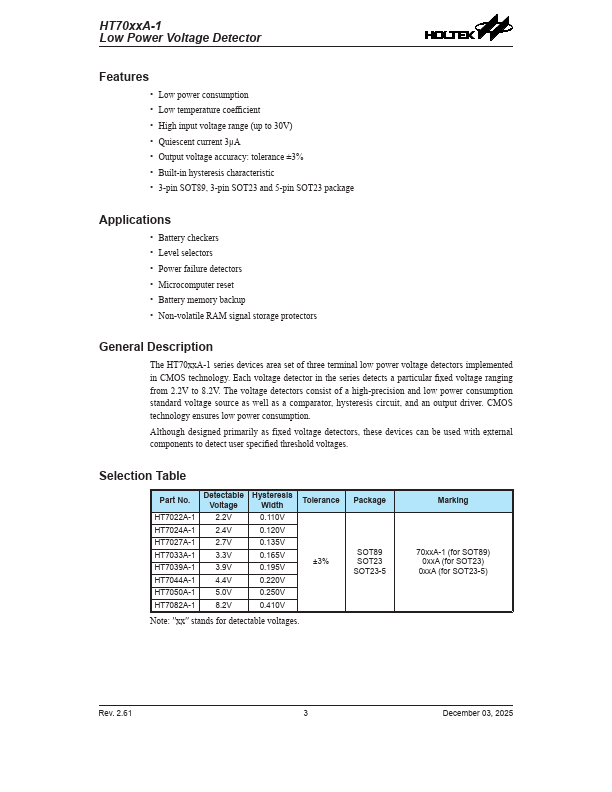

The HT70xxA-1 series devices area set of three terminal low power voltage detectors implemented in CMOS technology. Each voltage detector in the series detects a particular fixed voltage ranging from 2.2V to 8.2V.
- Low power consumption
- Low temperature coefficient
- High input voltage range (up to 30V)
- Quiescent current 3μA
- Output voltage accuracy: tolerance ±3%
- Built-in hysteresis characteristic
- 3-pin SOT89, 3-pin SOT23 and 5-pin SOT23 package
