Datasheet Details
| Part number | HT7022A-2 |
|---|---|
| Manufacturer | Holtek Semiconductor |
| File Size | 357.60 KB |
| Description | Voltage Detector |
| Datasheet |
 HT7022A-2 Datasheet
|
|
|

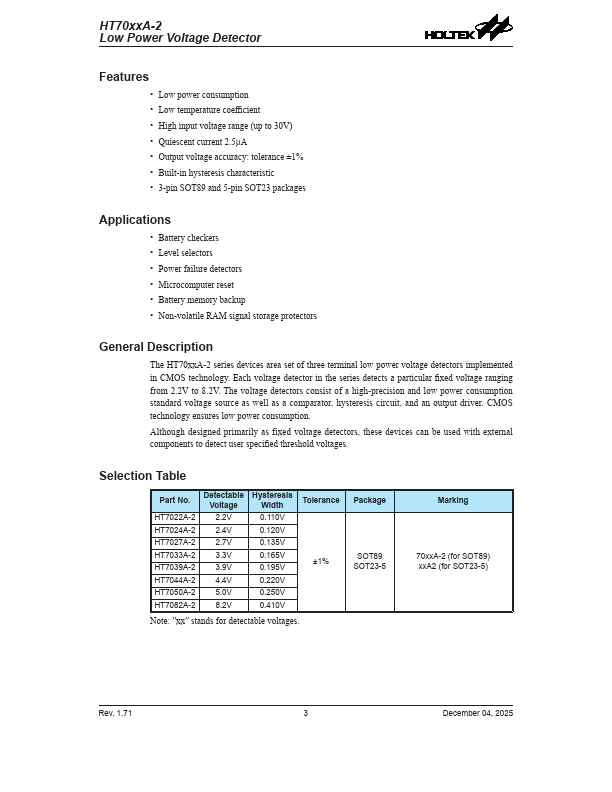

General Description
The HT70xxA-2 series devices area set of three terminal low power voltage detectors implemented in CMOS technology.
Each voltage detector in the series detects a particular fixed voltage ranging from 2.2V to 8.2V.
Key Features
- Low power consumption.
- Low temperature coefficient.
- High input voltage range (up to 30V).
- Quiescent current 2.5μA.
- Output voltage accuracy: tolerance ±1%.
- Built-in hysteresis characteristic.
- TO92, SOT89 and SOT23-5 package.
