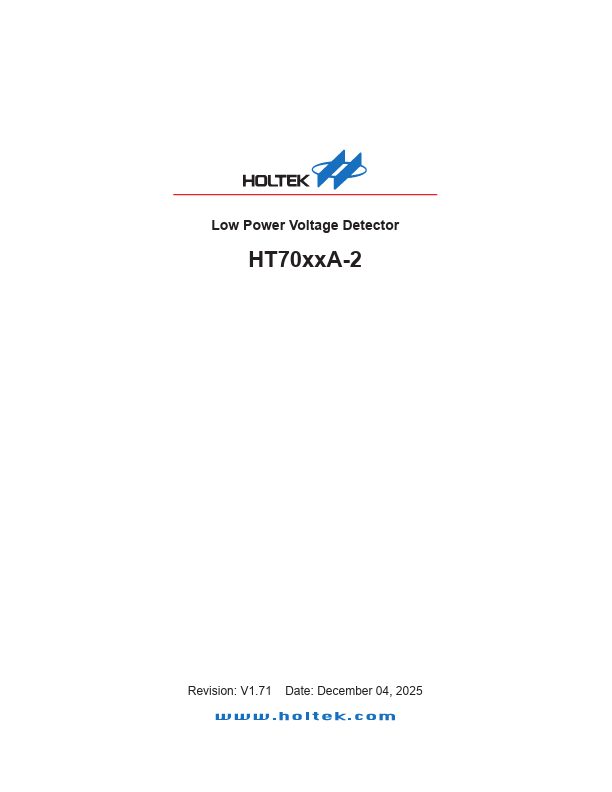

Datasheet Summary
Low Power Voltage Detector
HT70xxA-2
Revision: V1.71 Date: December 04, 2025

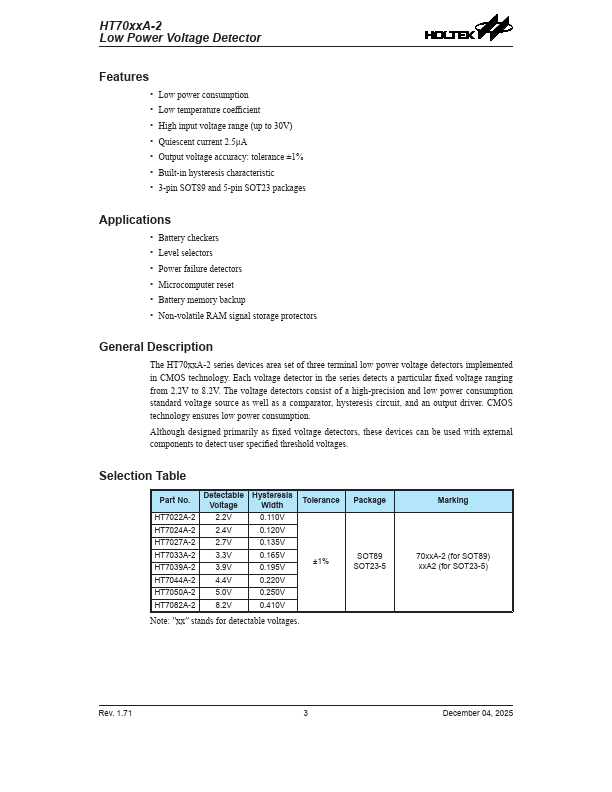

HT70xxA-2 Low Power Voltage Detector
Features
- Low power consumption
- Low temperature coefficient
- High input voltage range (up to 30V)
- Quiescent current 2.5μA
- Output voltage accuracy: tolerance ±1%
- Built-in hysteresis characteristic
- 3-pin SOT89 and 5-pin SOT23 packages
Applications
- Battery checkers
- Level selectors
- Power failure detectors
- Microputer reset
- Battery memory backup
- Non-volatile RAM signal storage protectors
General Description
The HT70xxA-2 series devices area set of three terminal low power voltage detectors implemented in CMOS technology. Each voltage detector in the...
