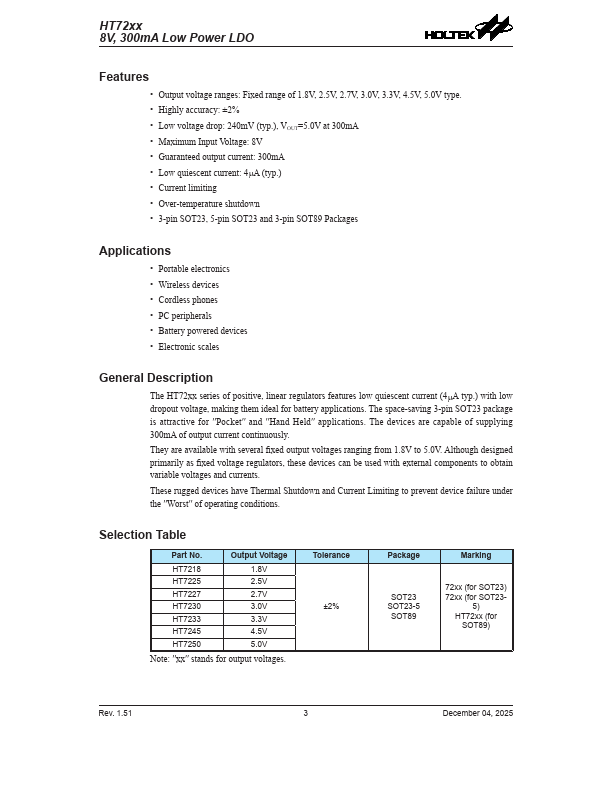

HT7245 Key Features
- Highly accuracy: ±2%
- Low voltage drop: 240mV (typ.), VOUT=5.0V at 300mA
- Maximum Input Voltage: 8V
- Guaranteed output current: 300mA
- Low quiescent current: 4mA (typ.)
- Current limiting
- Over-temperature shutdown
- 3-pin SOT23, 5-pin SOT23 and 3-pin SOT89 Packages
