HT7330-3 - 250mA TinyPower LDO

This page provides the datasheet information for the HT7330-3, a member of the HT7321-3 250mA TinyPower LDO family.

Product Overview

Holtek Semiconductor

Datasheet Details

Part number	HT7330-3
Manufacturer	Holtek Semiconductor
File Size	757.45 KB
Description	250mA TinyPower LDO
Datasheet	HT7330-3 Datasheet

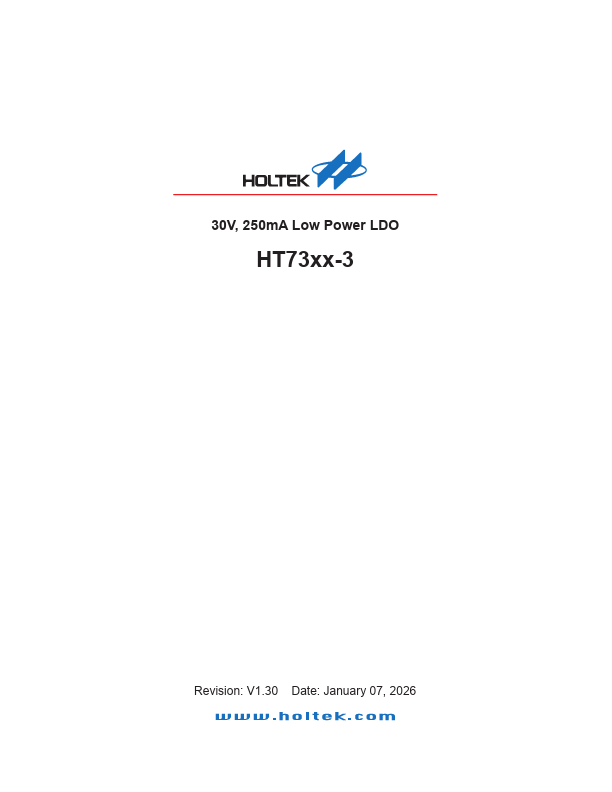

Additional preview pages of the HT7330-3 datasheet.

HT7330-3 Product details

Description

The HT73xx-3 device series are low power high voltage regulators implemented in CMOS technology which have the advantages of low voltage drop and low quiescent current.

They allow input voltages as high as 30V.

They are available with several fixed output voltages ranging from 2.1V to 5.0V.

Features

Low power consumption.
Low voltage drop.
Low temperature coefficient.
High input voltage - up to 30V.
Output voltage accuracy: tolerance ±2%.
Over current protection.
TO-92, SOT89-3, and 8-pin SOP-EP packages.
