HT7521-2 - 100mA Low Power LDO

This page provides the datasheet information for the HT7521-2, a member of the HT75xx-2 100mA Low Power LDO family.

Product Overview

📥 Download Datasheet

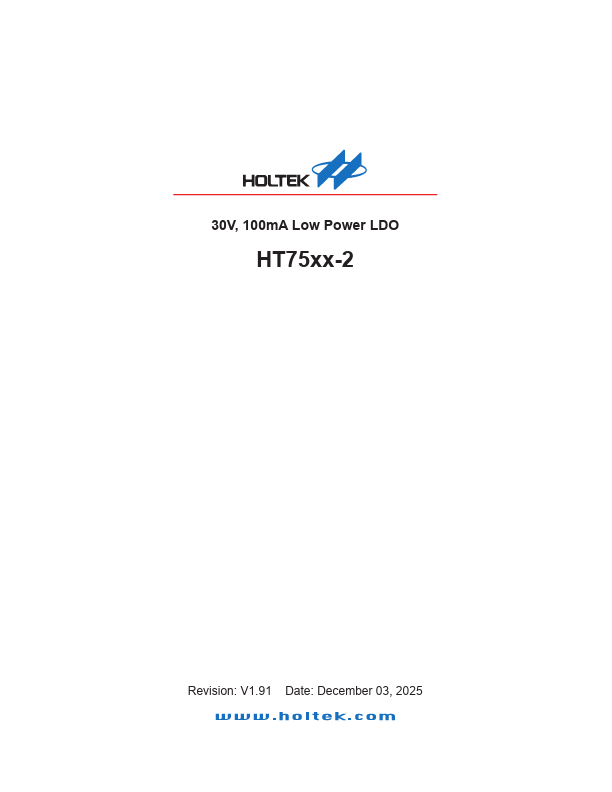

Datasheet preview – HT7521-2

Datasheet Details

Part number HT7521-2
Manufacturer Holtek Semiconductor
File Size 381.25 KB
Description 100mA Low Power LDO
Datasheet download datasheet HT7521-2 Datasheet
Additional preview pages of the HT7521-2 datasheet.

HT7521-2 Product details

Description

The HT75XX-2 series is a set of three-terminal low power high voltage implemented in CMOS technology.

They can deliver 100mA output current and allow an input voltage as high as 24V.

They are available with several fixed output voltages ranging from 2.1V to 12.0V.

Features
