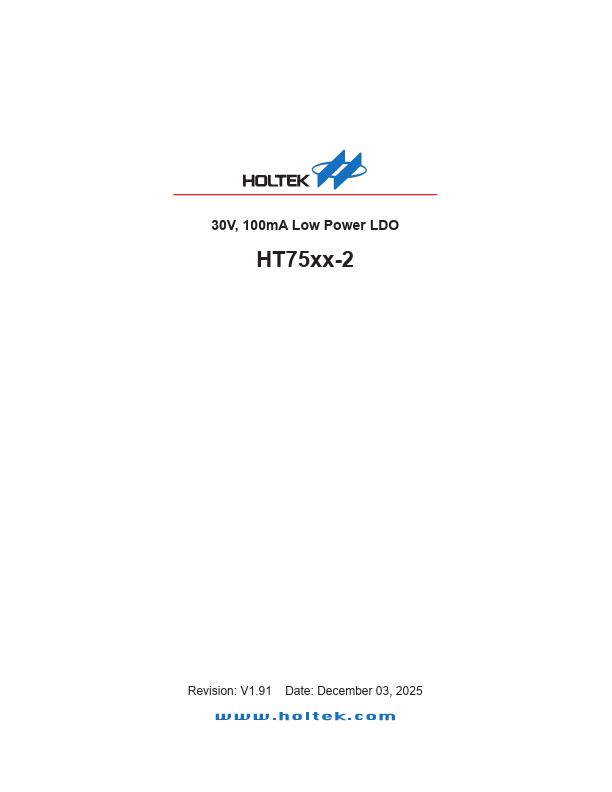

30V, 100m A Low Power LDO HT75xx-2 Revision: V1.91 Date: December 03, 2025 HT75xx-2 30V, 100m A Low Power LDO Features - Low power consumption - Low voltage drop - Low temperature coefficient - High input voltage (up to 30V) - Quiescent current 2.5μA - High output current : 100m A - Output voltage accuracy: tolerance ±1% - 3-pin SOT89 and 5-pin SOT23 packages Applications - Battery-powered equipment - munication equipment - Audio/Video equipment General Description The HT75xx-2 series is a set of three-terminal low power high voltage implemented in CMOS technology. They can deliver 100m A output current and allow an input voltage as high as 30V. They are available with several fixed output voltages ranging from 2.1V to 12.0V. CMOS technology ensures low voltage drop and low quiescent current. Although designed primarily as fixed voltage regulators, these devices can be used with external ponents to obtain variable voltages and currents. Selection Table Part No. HT7521-2 HT7523-2 HT7525-2 HT7527-2 HT7530-2 HT7533-2 HT7536-2 HT7540-2 HT7544-2 HT7550-2 HT7560-2 HT7570-2 HT7580-2 HT7590-2 HT75A0-2 HT75C0-2 Output Voltage 2.1V 2.3V 2.5V 2.7V 3.0V 3.3V 3.6V 4.0V 4.4V 5.0V 6.0V 7.0V 8.0V 9.0V 10.0V 12.0V Note: “xx” stands for output voltages. Package Marking SOT89 SOT23-5 75xx-2 (for SOT89) 5xx2 (for SOT23-5) Rev. 1.91 December 03,...
