HT7570-3 - 100mA TinyPower LDO

Download the HT7570-3 datasheet PDF. This datasheet also covers the HT7521-3 variant, as both devices belong to the same 100ma tinypower ldo family and are provided as variant models within a single manufacturer datasheet.

Description

3 Selection Table 3 Block Diagram 4 Pin Assignment 4 AbsolutemAximum Ratings 4 Thermal Information 4 Pin Descriptions 5 Electrical Characteristics 5 HT7521-3, +2.1V Output Type5 HT7523-3, +2.3V Output Type5 HT7525-3, +2.5V Output Type6 HT7527-3, +2.7V Output Type6 HT7530-3, +3.0V Output Type6 HT7533

Features

  • 3.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (HT7521-3-HoltekSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
HT7500 Clinical Thermometer Holtek Semiconductor Inc
HT7501 Clinical Thermometer Holtek Semiconductor Inc
HT7510 Clinical Thermometer Holtek Semiconductor Inc
HT7512A 12-Bit Serial Input DIGITAL-TO-ANALOG CONVERTER HTCSEMI
HT7555C CMOS process ultra-low power single/dual timer HTCSEMI

Other Datasheets by Holtek Semiconductor

Part Number Description
HT7570-1 100mA Low Power LDO
HT7570-2 100mA Low Power LDO
HT7570-7 100mA TinyPower LDO
HT7521-1 100mA Low Power LDO
HT7521-2 100mA Low Power LDO

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

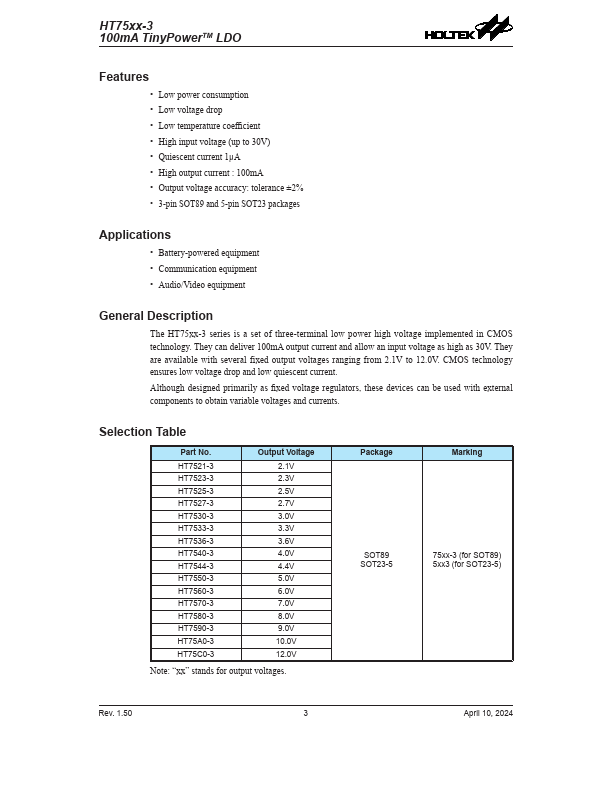

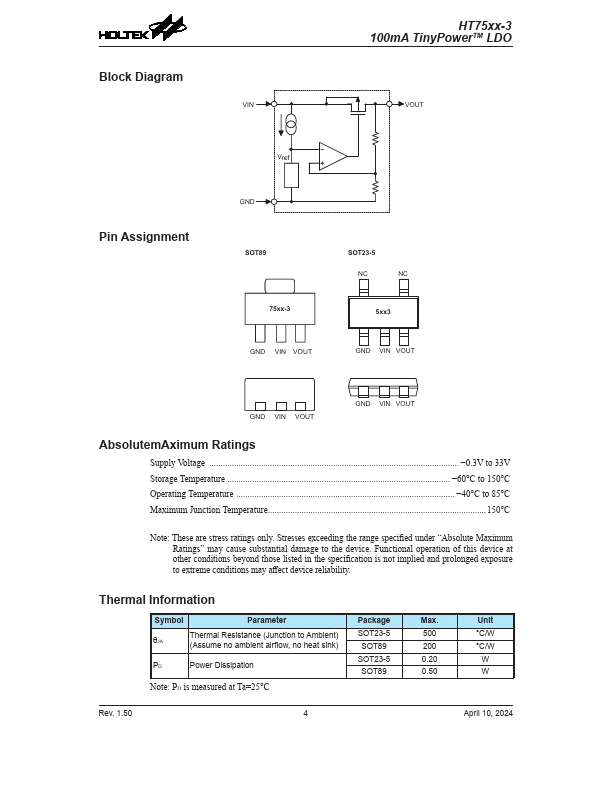

100mA TinyPowerTM LDO HT75xx-3 Revision: V1.50 Date: April 10, 2024 HT75xx-3 100mA TinyPowerTM LDO Table of Contents Features.................................................................................................................. 3 Applications........................................................................................................... 3 General Description............................................................................................... 3 Selection Table....................................................................................................... 3 Block Diagram........................................................................................................ 4 Pin Assignment...............................................................
