BC3602

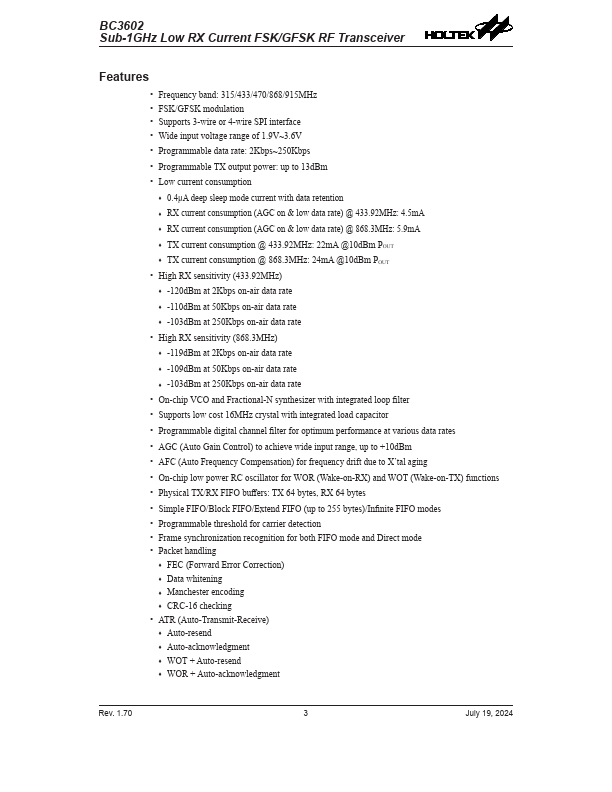

Features
- Frequency band: 315/433/470/868/915MHz
- FSK/GFSK modulation
- Supports 3-wire or 4-wire SPI interface
- Wide input voltage range of 1.9V~3.6V
- Programmable data rate: 2Kbps~250Kbps
- Programmable TX output power: up to 13d Bm
- Low current consumption
- 0.4μA deep sleep mode current with data retention
- RX current consumption (AGC on & low data rate) @ 433.92MHz: 4.5m A
- RX current consumption (AGC on & low data rate) @ 868.3MHz: 5.9m A
- TX current consumption @ 433.92MHz: 22m A @10d Bm POUT
- TX current consumption @ 868.3MHz: 24m A @10d Bm POUT
- High RX sensitivity (433.92MHz)
- -120d Bm at 2Kbps on-air data rate
- -110d Bm at 50Kbps on-air data rate
- -103d Bm at 250Kbps on-air data rate
- High RX sensitivity (868.3MHz)
- -119d Bm at 2Kbps on-air data rate
- -109d Bm at 50Kbps on-air data rate
- -103d Bm at 250Kbps on-air data rate
- On-chip VCO and Fractional-N synthesizer with integrated loop filter
- Supports low cost 16MHz crystal with integrated load capacitor
-...
