BC3603

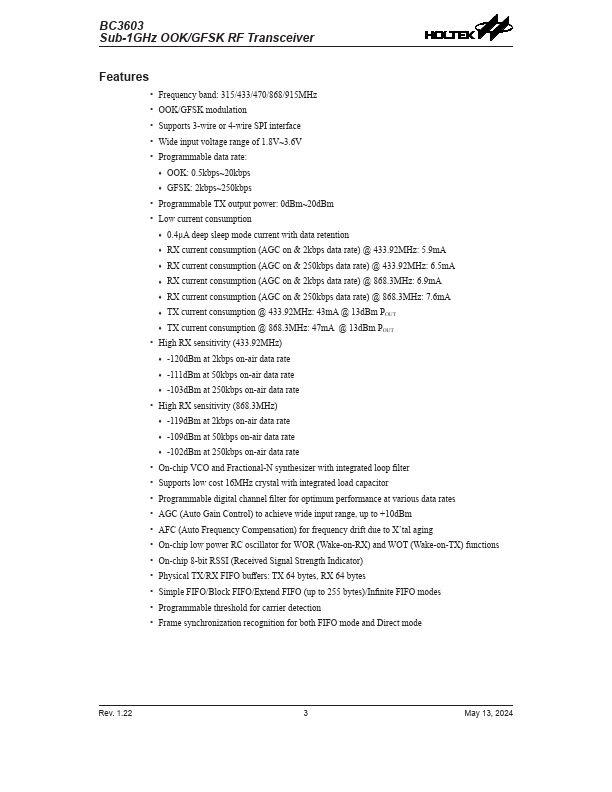

Features
- Frequency band: 315/433/470/868/915MHz
- OOK/GFSK modulation
- Supports 3-wire or 4-wire SPI interface
- Wide input voltage range of 1.8V~3.6V
- Programmable data rate:
- OOK: 0.5kbps~20kbps
- GFSK: 2kbps~250kbps
- Programmable TX output power: 0d Bm~20d Bm
- Low current consumption
- 0.4μA deep sleep mode current with data retention
- RX current consumption (AGC on & 2kbps data rate) @ 433.92MHz: 5.9m A
- RX current consumption (AGC on & 250kbps data rate) @ 433.92MHz: 6.5m A
- RX current consumption (AGC on & 2kbps data rate) @ 868.3MHz: 6.9m A
- RX current consumption (AGC on & 250kbps data rate) @ 868.3MHz: 7.6m A
- TX current consumption @ 433.92MHz: 43m A @ 13d Bm POUT
- TX current consumption @ 868.3MHz: 47m A @ 13d Bm POUT
- High RX sensitivity (433.92MHz)
- -120d Bm at 2kbps on-air data rate
- -111d Bm at 50kbps on-air data rate
- -103d Bm at 250kbps on-air data rate
- High RX sensitivity (868.3MHz)
- -119d Bm at 2kbps on-air data rate
- -109d Bm at 50kbps on-air data rate
-...
