HT42B532-1 Datasheet | Holtek Semiconductor

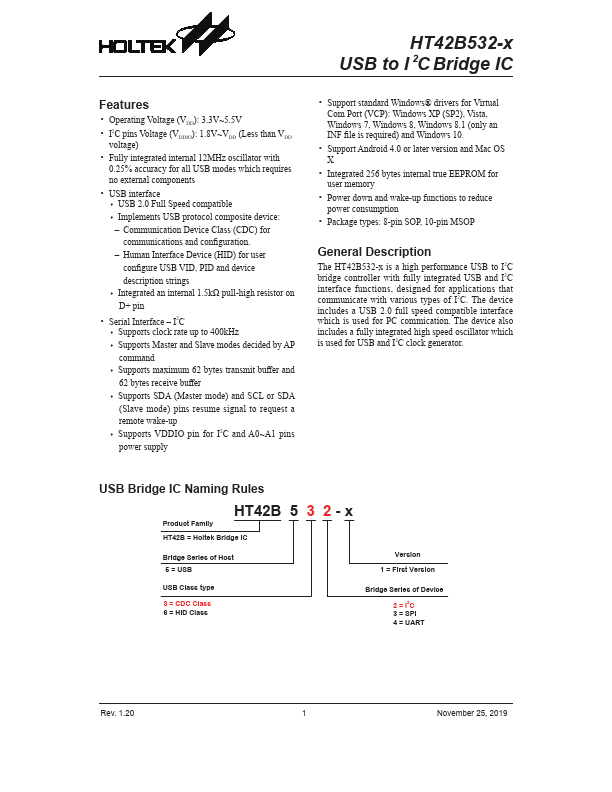

HT42B532-x USB to I 2C Bridge IC Features - Operating Voltage (VDD): 3.3V~5.5V - I2C pins Voltage (VDDIO): 1.8V~VDD (Less than VDD voltage) - Fully integrated internal 12MHz oscillator with 0.25% accuracy for all USB modes which requires no external ponents - USB interface - USB 2.0 Full Speed patible - Implements USB protocol posite device: - munication Device Class (CDC) for munications and configuration. - Human Interface Device (HID) for user configure USB VID, PID and device description strings - Integrated an internal 1.5kΩ pull-high resistor on D+ pin - Serial Interface - I2C - Supports clock rate up to 400k Hz - Supports Master and Slave modes decided by AP mand - Supports maximum 62 bytes transmit buffer and 62 bytes receive buffer - Supports SDA (Master mode) and SCL or SDA (Slave mode) pins resume signal to request a remote wake-up - Supports VDDIO pin for I2C and A0~A1 pins power supply - Support standard Windows® drivers for Virtual Port (VCP): Windows XP (SP2), Vista, Windows 7, Windows 8, Windows 8.1 (only an INF file is required) and Windows 10. - Support Android 4.0 or later version and Mac OS X - Integrated 256 bytes internal true EEPROM for user memory - Power down and wake-up functions to reduce power consumption - Package types: 8-pin SOP, 10-pin MSOP General Description The HT42B532-x is a high performance USB to I2C bridge controller with fully integrated USB and I2C interface functions, designed for applications that municate with various types of I2C. The device includes a USB 2.0 full speed patible interface which is used for PC mication. The device also includes a fully integrated high speed oscillator which is used for USB and I2C clock generator. USB Bridge IC Naming Rules Product Family HT42B 5 3 2 - x HT42B = Holtek Bridge...
