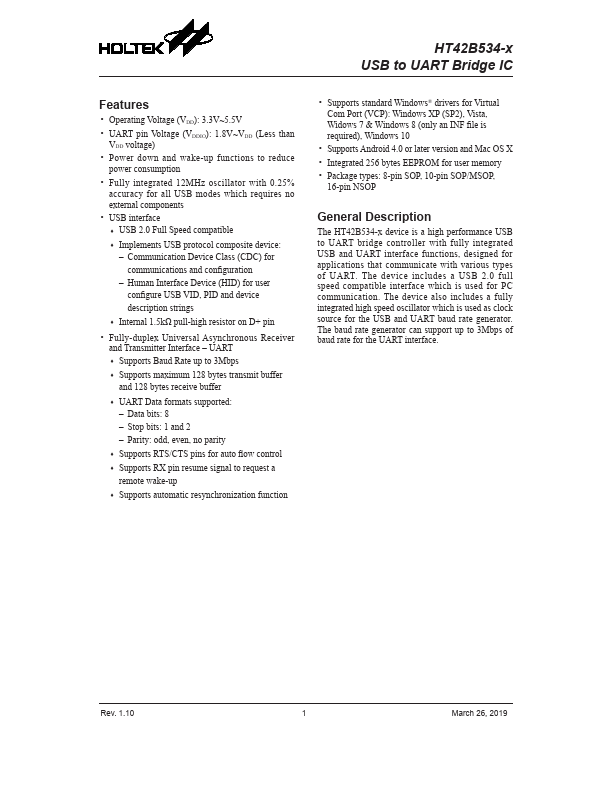

HT42B534-1 Description
strings ♦♦ Internal 1.5kΩ pull-high resistor on D+ pin Fully-duplex Universal Asynchronous Receiver and Transmitter Interface UART ♦♦ Supports Baud Rate up to 3Mbps ♦♦ Supports maximum 128 bytes transmit buffer and 128 bytes receive buffer ♦♦ UART Data formats supported: odd, even, no parity ♦♦ Supports RTS/CTS pins for auto flow control ♦♦ Supports RX pin resume signal to request a remote wake-up ♦♦ Supports...
HT42B534-1 Key Features
- Operating Voltage (VDD): 3.3V~5.5V
- UART pin Voltage (VDDIO): 1.8V~VDD (Less than
- Power down and wake-up functions to reduce
- Fully integrated 12MHz oscillator with 0.25%
- USB interface -- USB 2.0 Full Speed patible
- Implements USB protocol posite device: -- munication Device Class (CDC) for munications and configuration -- Human Inter
- Internal 1.5kΩ pull-high resistor on D+ pin
- Fully-duplex Universal Asynchronous Receiver and Transmitter Interface
- UART -- Supports Baud Rate up to 3Mbps
- Supports maximum 128 bytes transmit buffer and 128 bytes receive buffer
