HT7130-3 Overview
Key Specifications
Package: LSSOP
Length: 2.9 mm
Width: 1.6 mm
Max Operating Temp: 85 °C

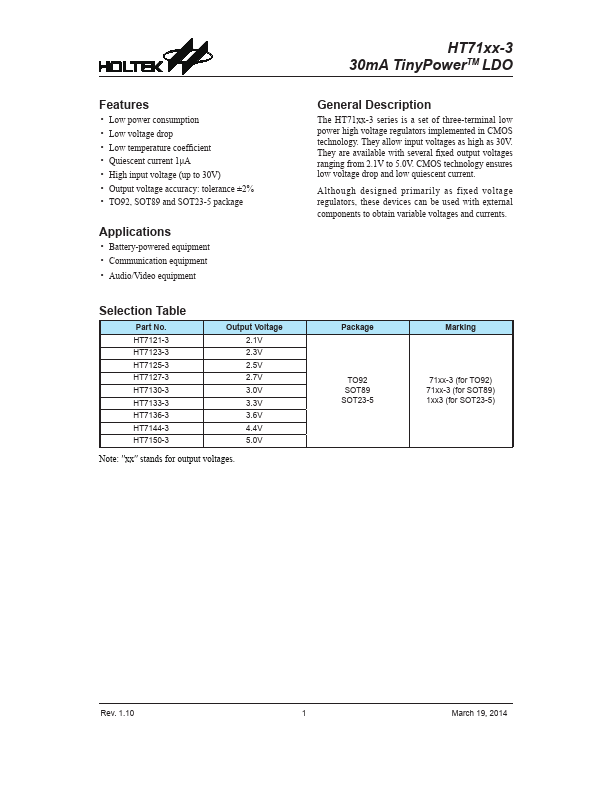

Description
The HT71xx-3 series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 30V.
Key Features
- Low power consumption
- Low voltage drop
- Low temperature coefficient
- Quiescent current 1μA
- High input voltage (up to 30V)
