Holtek Semiconductor HT7A4001F
The HT7A4001N/HT7A4001H/HT7A4001F are highly integrated flyback controllers that achieve high efficiency, low power consumption and cost-effective for switching mode power supply (SMPS). The controllers integrate the multi-mode operation for different output loads to optimize the system efficiency. The controllers also have an integrated frequency jitter to reduce the EMI emissions and simplify EMI filter design.| Part No. | HT7A4001F |
|---|---|
| Datasheet | HT7A4001F Download |
| Manufacturer |  Holtek Semiconductor |
| Description | Flyback Controller |
| Buy | Stock & Price |

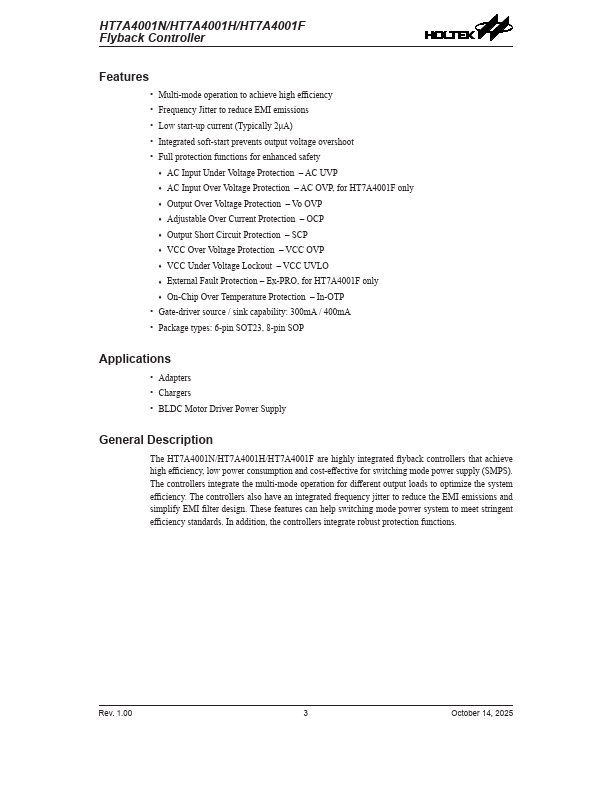

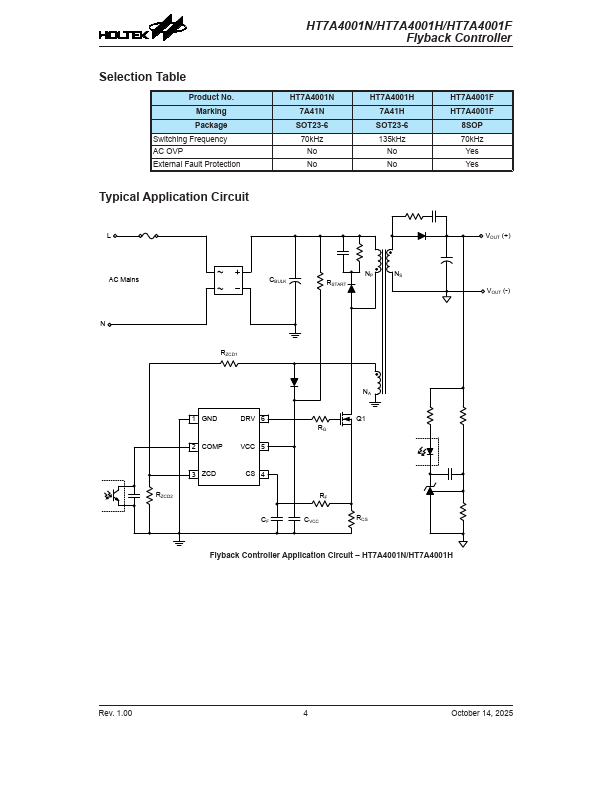

FEATURES
● Multi-mode operation to achieve high efficiency● Frequency Jitter to reduce EMI emissions
● Low start-up current (Typically 2μA)
● Integrated soft-start prevents output voltage overshoot
● Full protection functions for enhanced safety ♦ AC Input Under Voltage Protection – AC UVP ♦ AC Input Over Voltage Protection – AC OVP, for HT7A4001F only ♦ Output Over Voltage Protection – Vo OVP ♦ Adjustable Over Current Protection – OCP ♦ Output Short Circuit Protection – SCP ♦ VCC Over Voltage Protection – VCC OVP ♦ VCC Under Voltage Lockout – VCC UVLO ♦ External Fault Protection – Ex-PRO, for HT7A4001F only ♦ On-Chip Over Temperature Protection – In-OTP
● Gate-driver source / sink capability: 300mA / 400mA
● Package types: 6-pin SOT23, 8-pin SOP
APPLICATIONS
● Adapters● Chargers
● BLDC Motor Driver Power Supply
GENERAL DESCRIPTION
These features can help switching mode power system to meet stringent efficiency standards. In addition, the controllers integrate robust protection functions.
