HT7A4001H
Description
The HT7A4001N/HT7A4001H/HT7A4001F are highly integrated flyback controllers that achieve high efficiency, low power consumption and cost-effective for switching mode power supply (SMPS). The controllers integrate the multi-mode operation for different output loads to optimize the system efficiency.

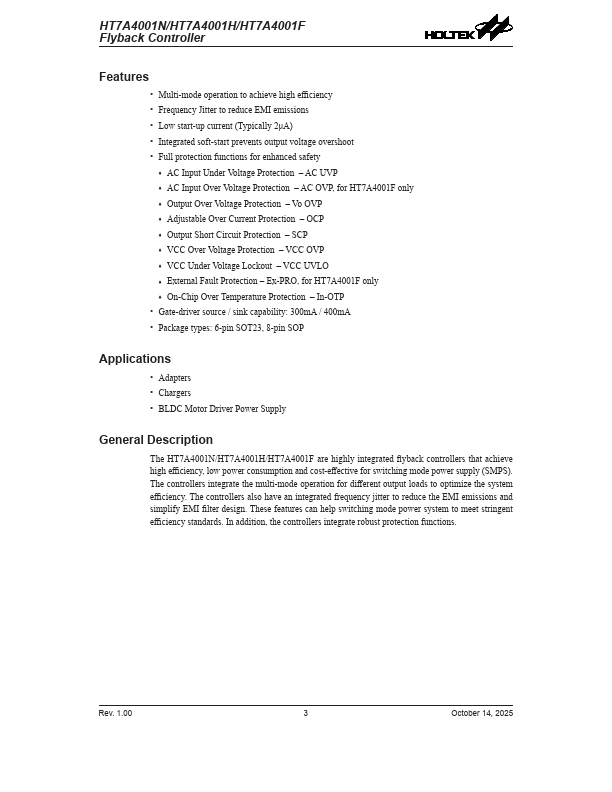

Key Features
- Multi-mode operation to achieve high efficiency
- Frequency Jitter to reduce EMI emissions
- Low start-up current (Typically 2μA)
- Integrated soft-start prevents output voltage overshoot
- Full protection functions for enhanced safety
- AC Input Under Voltage Protection – AC UVP
- AC Input Over Voltage Protection – AC OVP, for HT7A4001F only
- Output Over Voltage Protection – Vo OVP
- Adjustable Over Current Protection – OCP
- Output Short Circuit Protection – SCP
