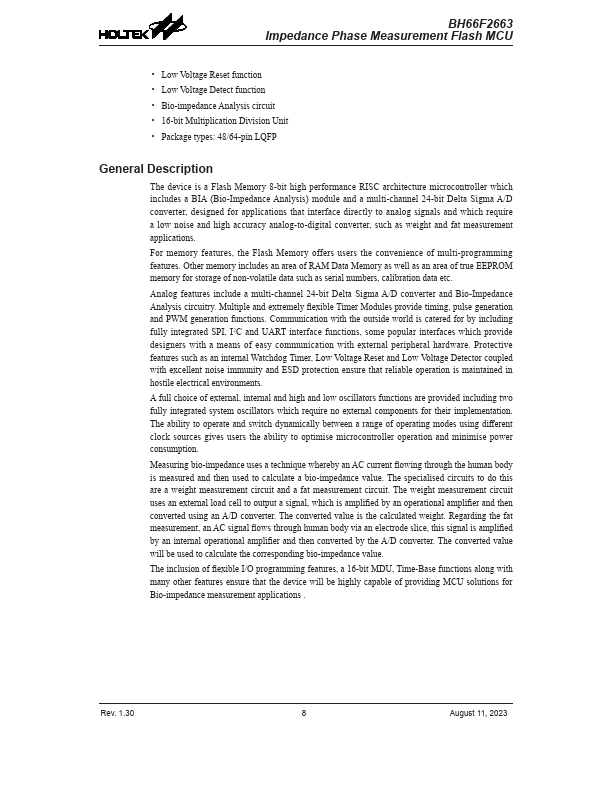

BH66F2663 Description
The device is a Flash Memory 8-bit high performance RISC architecture microcontroller which includes a BIA (Bio-Impedance Analysis) module and a multi-channel 24-bit Delta Sigma A/D converter, designed for applications that interface directly to analog signals and which require a low noise and high accuracy analog-to-digital converter, such as weight and fat measurement applications.

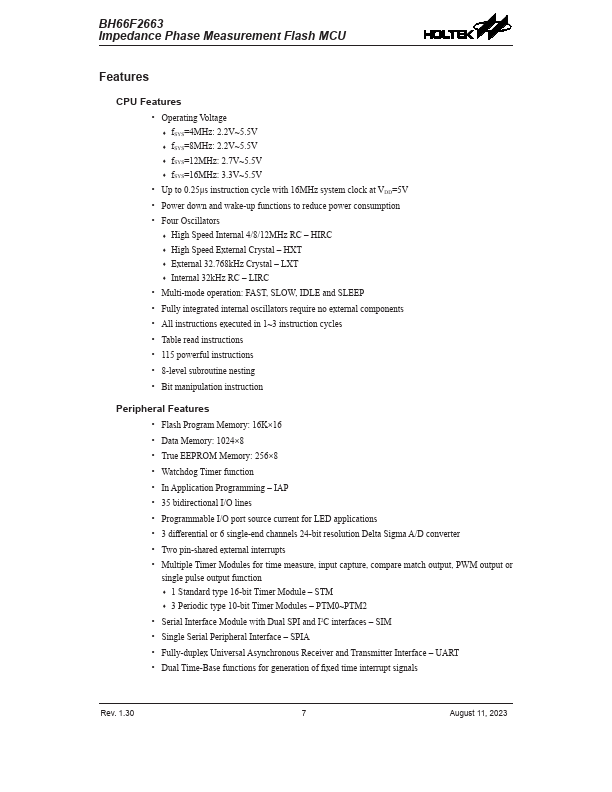

BH66F2663 Key Features
- Operating Voltage
- fSYS=4MHz: 2.2V~5.5V
- fSYS=8MHz: 2.2V~5.5V
- fSYS=12MHz: 2.7V~5.5V
- fSYS=16MHz: 3.3V~5.5V
- Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Four Oscillators
- High Speed Internal 4/8/12MHz RC
- High Speed External Crystal
