BH67F5265 Description

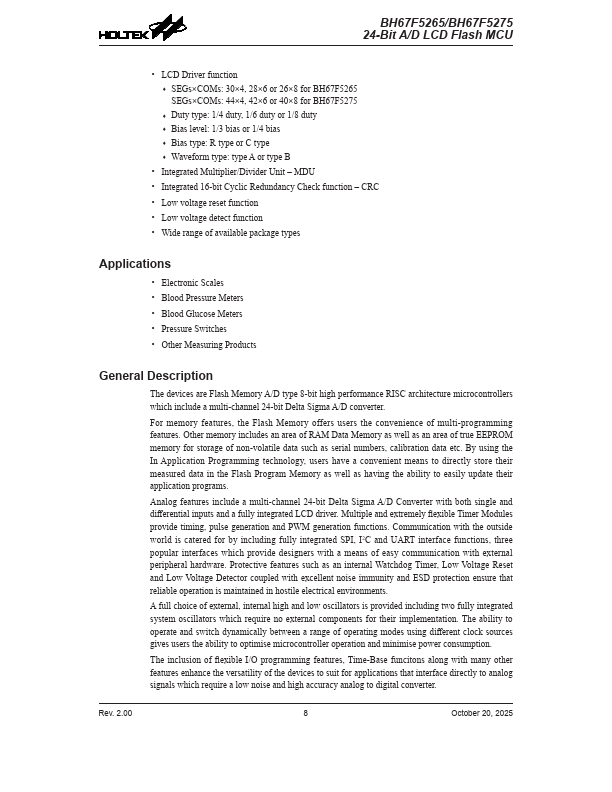

The devices are Flash Memory A/D type 8-bit high performance RISC architecture microcontrollers which include a multi-channel 24-bit Delta Sigma A/D converter.

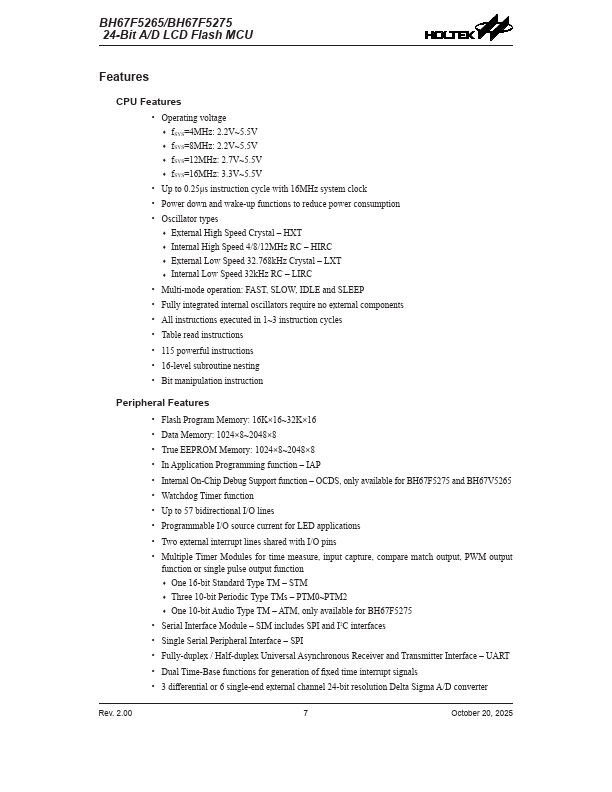

BH67F5265 Key Features
- Operating voltage
- fSYS=4MHz: 2.2V~5.5V
- fSYS=8MHz: 2.2V~5.5V
- fSYS=12MHz: 2.7V~5.5V
- fSYS=16MHz: 3.3V~5.5V
- Up to 0.25μs instruction cycle with 16MHz system clock
- Power down and wake-up functions to reduce power consumption
- Oscillator types
- External High Speed Crystal
- Internal High Speed 4/8/12MHz RC
BH67F5265 Applications
- Two external interrupt lines shared with I/O pins
- Multiple Timer Modules for time measure, input capture, pare match output, PWM output function or single pulse output function ♦ One 16-bit Standard Type TM
