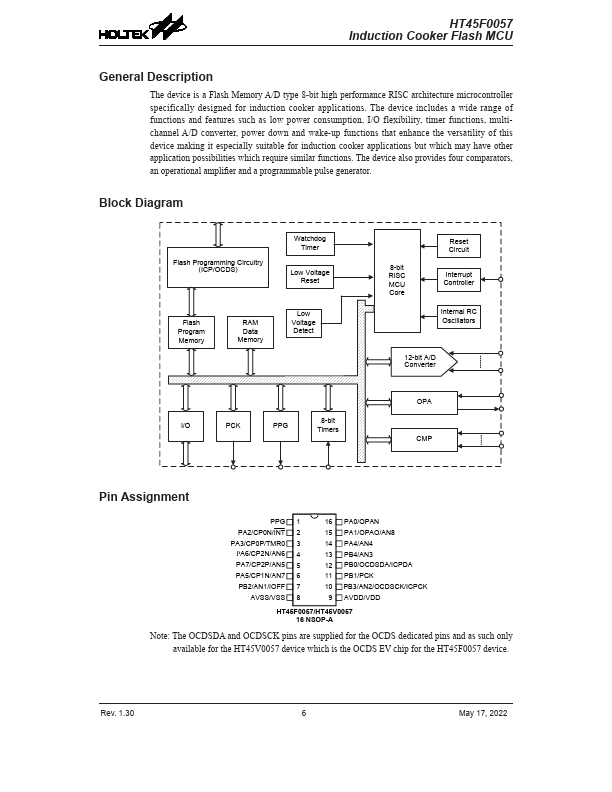

HT45F0057 Description
The device is a Flash Memory A/D type 8-bit high performance RISC architecture microcontroller specifically designed for induction cooker applications. The device includes a wide range of functions.

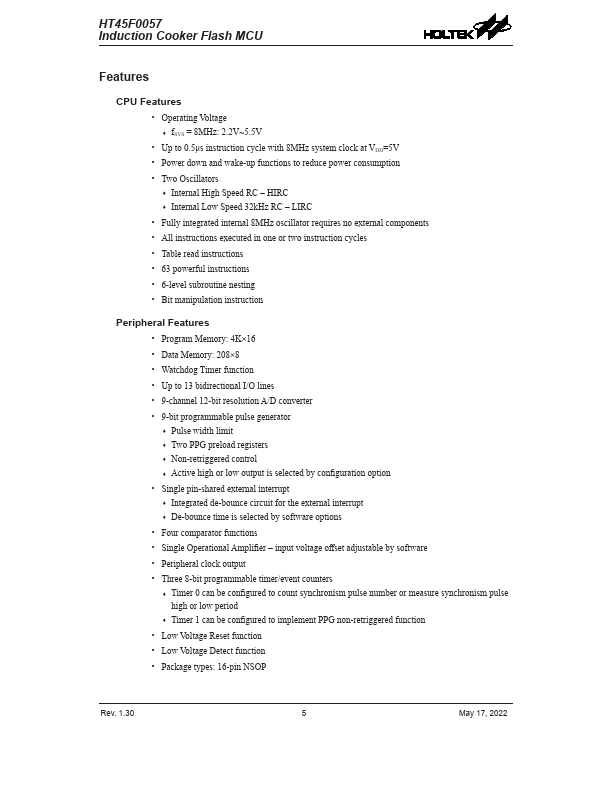

HT45F0057 Key Features
- Operating Voltage
- fSYS = 8MHz: 2.2V~5.5V
- Up to 0.5μs instruction cycle with 8MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Two Oscillators
- Internal High Speed RC
- Internal Low Speed 32kHz RC
- Fully integrated internal 8MHz oscillator requires no external ponents
- All instructions executed in one or two instruction cycles
- Table read instructions
