V5011S1062 - INTERNAL THREADED END-CONNECTION LINEAR VALVE PN16
This page provides the datasheet information for the V5011S1062, a member of the V5011S INTERNAL THREADED END-CONNECTION LINEAR VALVE PN16 family.
Features
Brass body with internal threaded end connections Low seat leakage rate Self-adjusting packing Accurate positioning to ensure state-of-the-art temperature control Directly-coupled electric and pneumatic actuators for easy mounting.
V5011S1005- INTERNAL THREADED END-CONNECTION LINEAR VALVE PN16
V5011S1013- INTERNAL THREADED END-CONNECTION LINEAR VALVE PN16
V5011S1021- INTERNAL THREADED END-CONNECTION LINEAR VALVE PN16
V5011S1039- INTERNAL THREADED END-CONNECTION LINEAR VALVE PN16
V5011S1047- INTERNAL THREADED END-CONNECTION LINEAR VALVE PN16
V5011S1054- INTERNAL THREADED END-CONNECTION LINEAR VALVE PN16
V5011S1070- INTERNAL THREADED END-CONNECTION LINEAR VALVE PN16
V5011S1088- INTERNAL THREADED END-CONNECTION LINEAR VALVE PN16
Full PDF Text Transcription
Click to expand full text

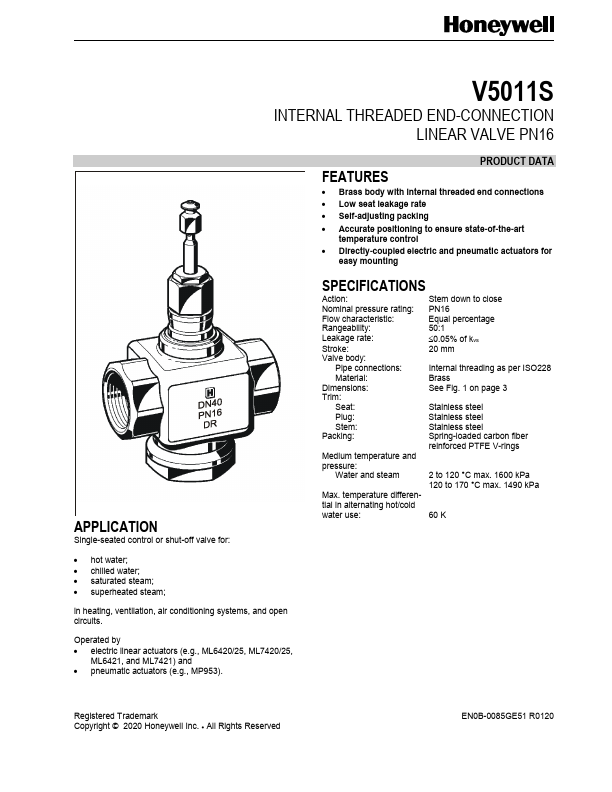

INTERNAL THREADED END-CONNECTION LINEAR VALVE PN16
PRODUCT DATA
V5011S
FEATURES
Brass body with internal threaded end connections Low seat leakage rate Self-adjusting packing Accurate positioning to ensure state-of-the-art temperature control Directly-coupled electric and pneumatic actuators for easy mounting
SPECIFICATIONS
Action: Nominal pressure rating: Flow characteristic: Rangeability: Leakage rate: Stroke: Valve body: Pipe connections: Material: Dimensions: Trim: Seat: Plug: Stem: Packing: Medium temperature and pressure: Water and steam Stem down to close PN16 Equal percentage 50:1 0.05% of kvs 20 mm Internal threading as per ISO228 Brass See Fig. 1 on page 3 DN15: stainless steel DN20...
