HGB053N06SL - 60V N-Ch Power MOSFET

📥 Download Datasheet

Datasheet Details

Part number HGB053N06SL
Manufacturer Hunteck
File Size 765.18 KB
Description 60V N-Ch Power MOSFET
Datasheet download datasheet HGB053N06SL Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HGB028N04A Silicon N-Channel Power MOSFET CR Micro
HGBJ5006 High Efficient Bridge Rectifier Yangzhou Yangjie

Other Datasheets by Hunteck

Part Number Description
HGB059N12S 120V N-Ch Power MOSFET
HGB059N12SL 120V N-Ch Power MOSFET
HGB020NE4S 45V N-Ch Power MOSFET
HGB029N06SL 60V N-Ch Power MOSFET
HGB029NE4SL 45V N-Ch Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

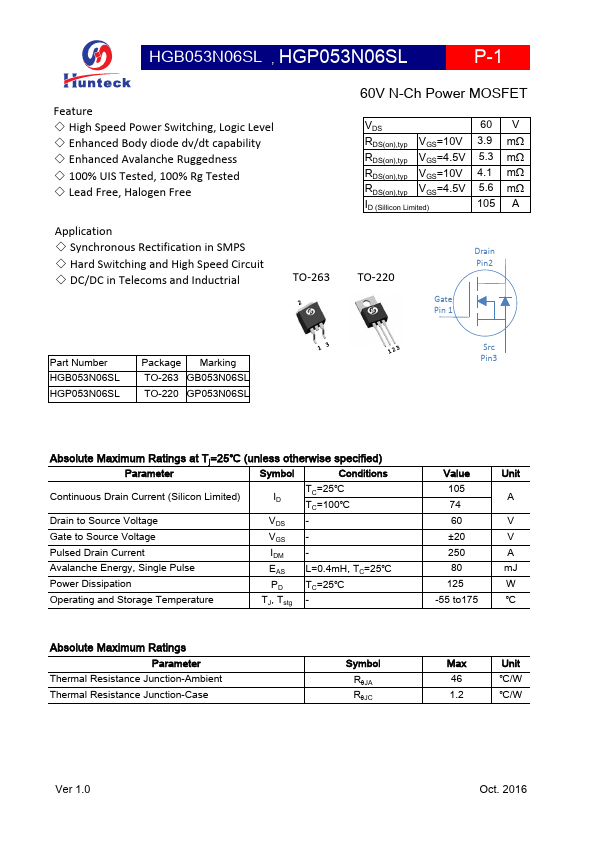

HGB053N06SL , HGP053N06SL P-1 Feature ◇ High Speed Power Switching, Logic Level ◇ Enhanced Body diode dv/dt capability ◇ Enhanced Avalanche Ruggedness ◇ 100% UIS Tested, 100% Rg Tested ◇ Lead Free, Halogen Free Application ◇ Synchronous Rectification in SMPS ◇ Hard Switching and High Speed Circuit ◇ DC/DC in Telecoms and Inductrial TO-263 60V N-Ch Power MOSFET VDS RDS(on),typ VGS=10V RDS(on),typ VGS=4.5V RDS(on),typ VGS=10V RDS(on),typ VGS=4.5V ID (Sillicon Limited) 60 3.9 5.3 4.1 5.
