Datasheet Details
| Part number | N140HGE-EAA |
|---|---|
| Manufacturer | Innolux |
| File Size | 3.75 MB |
| Description | TFT LCD |
| Datasheet | N140HGE-EAA-Innolux.pdf |
|
|

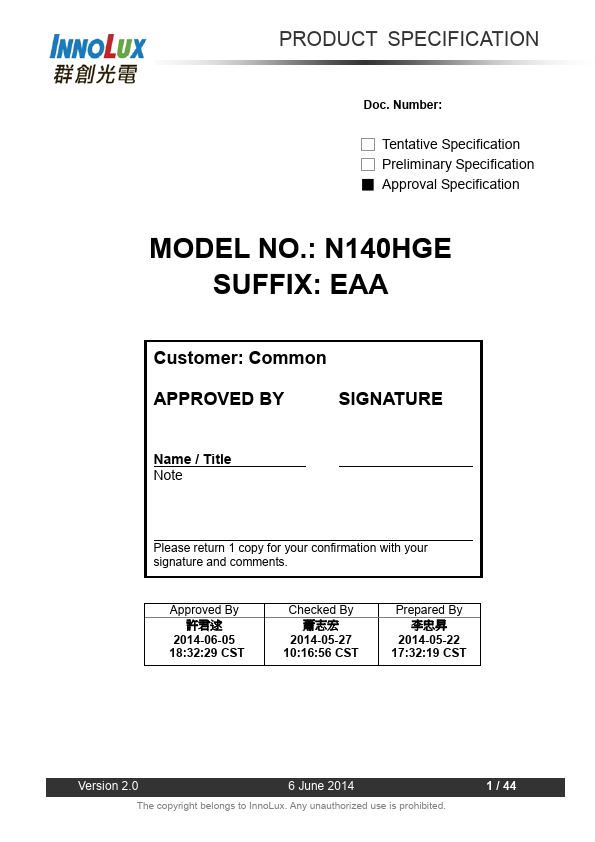

Overview: PRODUCT SPECIFICATION Doc. Number: □ Tentative Specification □ Preliminary Specification ▓ Approval Specification MODEL NO.: N140HGE SUFFIX: EAA Customer: mon APPROVED BY SIGNATURE Name / Title Note Please return 1 copy for your confirmation with your signature and ments. Approved By 許君逑 2014-06-05 18:32:29 CST Checked By 蕭志宏 2014-05-27 10:16:56 CST Prepared By 李忠昇 2014-05-22 17:32:19 CST Version 2.0 6 June 2014 The copyright belongs to InnoLux. Any unauthorized use is prohibited. 1 / 44 PRODUCT SPECIFICATION CONTENTS 1.
| Part number | N140HGE-EAA |
|---|---|
| Manufacturer | Innolux |
| File Size | 3.75 MB |
| Description | TFT LCD |
| Datasheet | N140HGE-EAA-Innolux.pdf |
|
|
|
.........................................................................................................

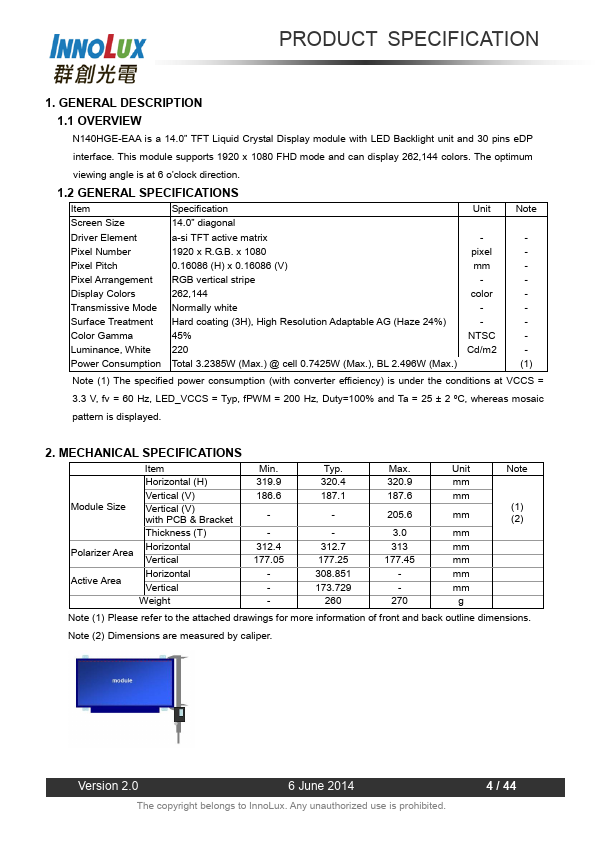

4 1.1 OVERVIEW..................................................................................................................4 1.2 GENERAL SPECIFICATIONS......................................................................................4 2.
MECHANICAL SPECIFICATIONS .............................................................................................
