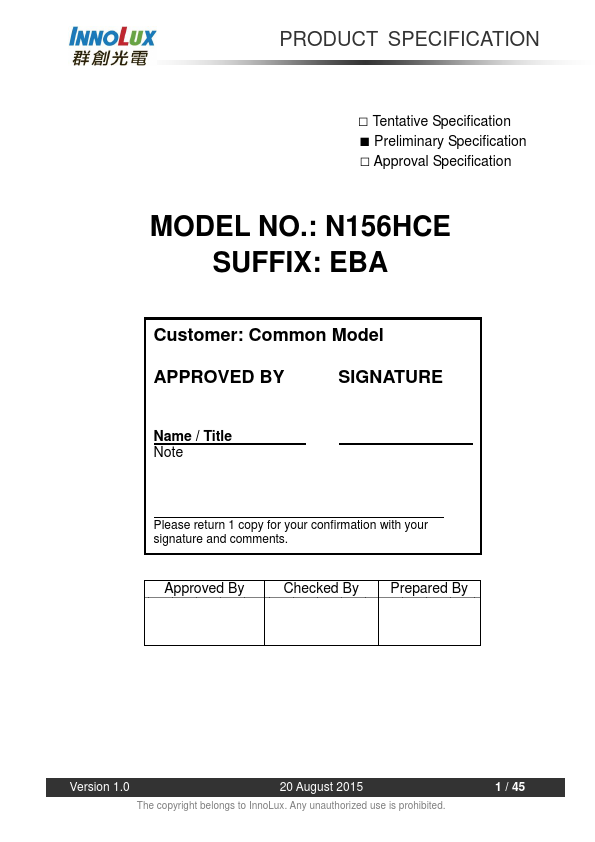

N156HCE-EBA
DESCRIPTION

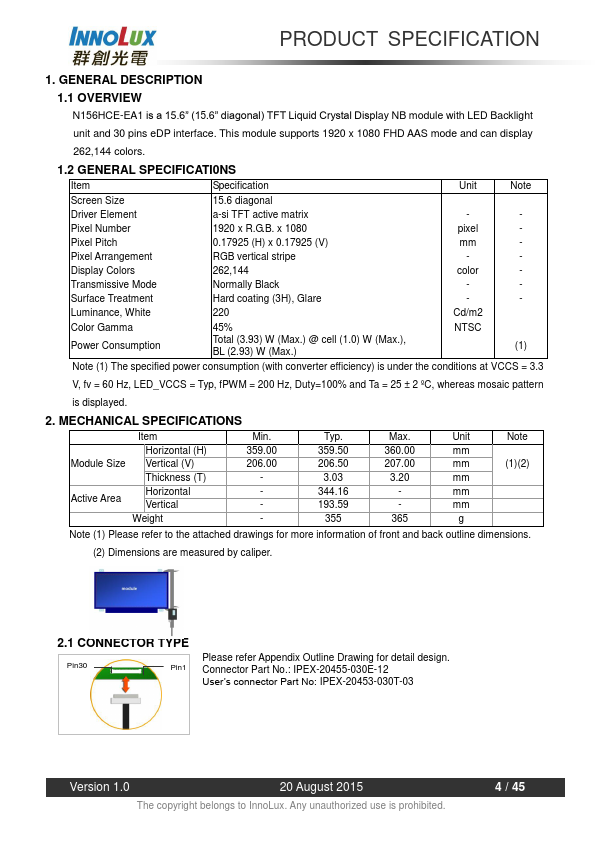

1.1 OVERVIEW
N156HCE-EA1 is a 15.6” (15.6” diagonal) TFT Liquid Crystal Display NB module with LED Backlight unit and 30 pins e DP interface. This module supports 1920 x 1080 FHD AAS mode and can display
262,144 colors.
1.2 GENERAL SPECIFICATI0NS
Item
Specification
Unit
Note
Screen Size
15.6 diagonal
Driver Element a-si TFT active matrix
- -
Pixel Number
1920 x R.G.B. x 1080 pixel
- Pixel Pitch
0.17925 (H) x 0.17925 (V) mm
- Pixel Arrangement
RGB vertical stripe
- -
Display Colors
262,144 color
- Transmissive Mode
Normally Black
- -
Surface Treatment
Hard coating (3H), Glare
- -
Luminance, White
Cd/m2
Color Gamma Power Consumption
45% Total (3.93) W (Max.) @ cell (1.0) W (Max.), BL (2.93) W (Max.)
NTSC (1)
Note (1) The specified power consumption (with converter efficiency) is under the conditions at VCCS = 3.3
V, fv = 60 Hz, LED_VCCS = Typ, f PWM = 200 Hz, Duty=100% and Ta = 25 ± 2 ºC, whereas mosaic pattern is...
