N156HGE-EA1
DESCRIPTION

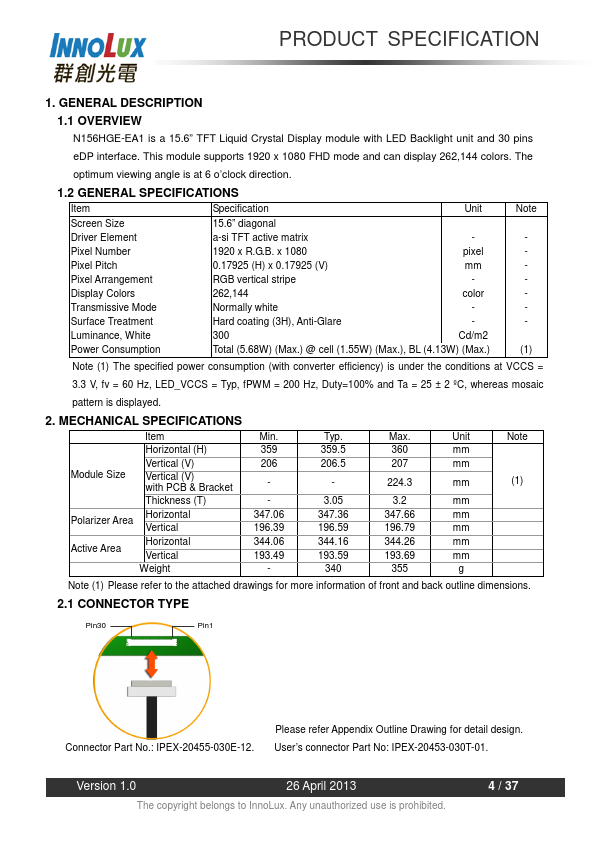

1.1 OVERVIEW
N156HGE-EA1 is a 15.6” TFT Liquid Crystal Display module with LED Backlight unit and 30 pins e DP interface. This module supports 1920 x 1080 FHD mode and can display 262,144 colors. The optimum viewing angle is at 6 o’clock direction.
1.2 GENERAL SPECIFICATIONS
Item Screen Size Driver Element Pixel Number Pixel Pitch Pixel Arrangement Display Colors Transmissive Mode Surface Treatment Luminance, White Power Consumption
Specification
Unit
15.6” diagonal a-si TFT active matrix
- 1920 x R.G.B. x 1080 pixel
0.17925 (H) x 0.17925 (V) mm
RGB vertical stripe
- 262,144 color
Normally white
- Hard coating (3H), Anti-Glare
- 300
Cd/m2
Total (5.68W) (Max.) @ cell (1.55W) (Max.), BL (4.13W) (Max.)
Note
- (1)
Note (1) The specified power consumption (with converter efficiency) is under the conditions at VCCS =
3.3 V, fv = 60 Hz, LED_VCCS = Typ, f PWM = 200 Hz, Duty=100% and Ta = 25 ± 2 ºC, whereas mosaic pattern is displayed.
