N156B6-L02 Datasheet | Chi Mei

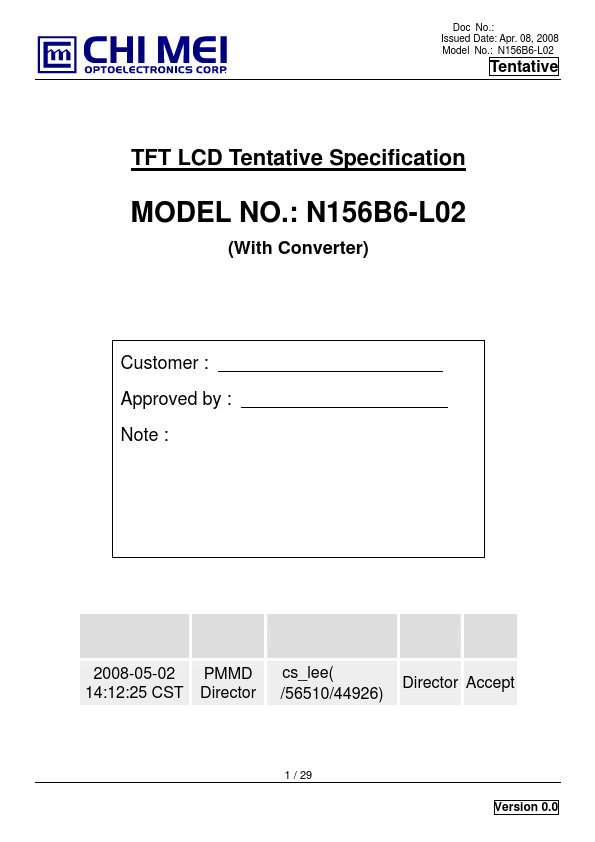

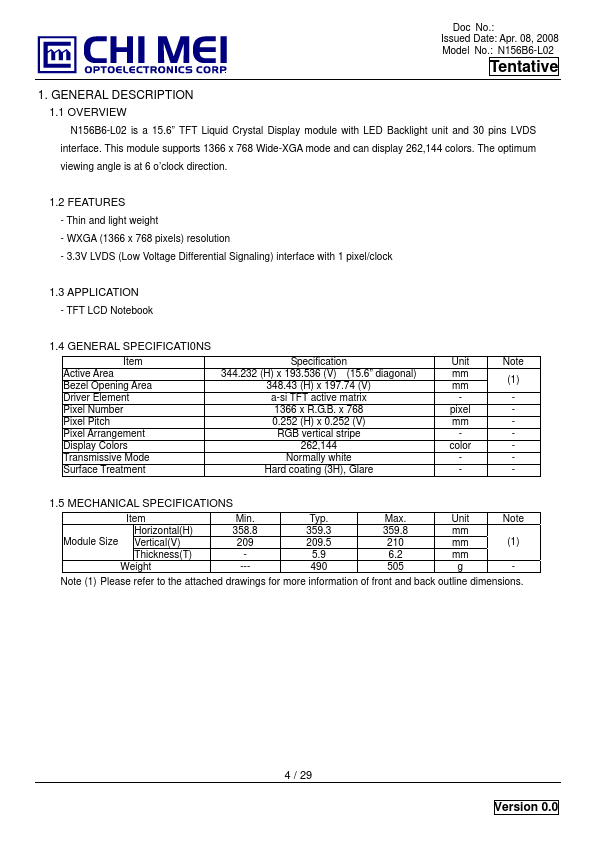

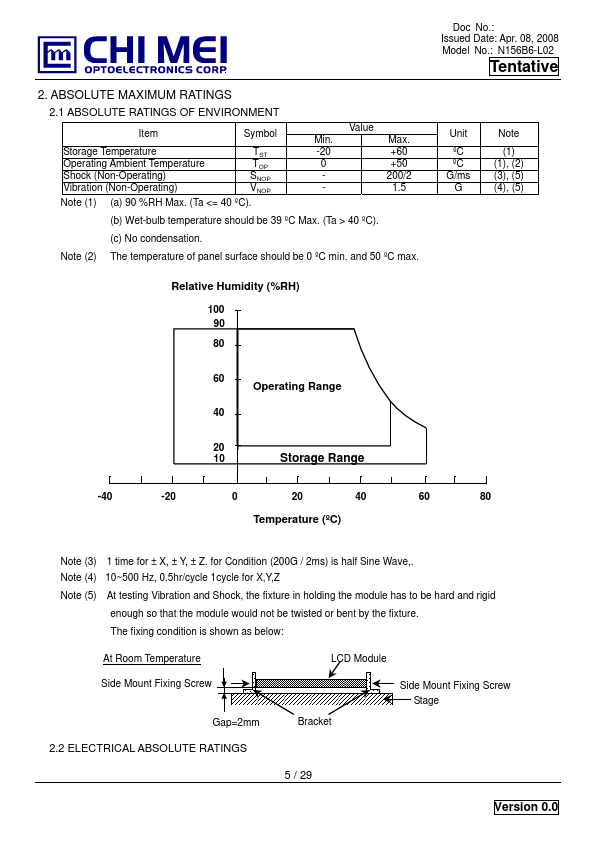

Doc No.: Issued Date: Apr. 08, 2008 Model No.: N156B6-L02 Tentative TFT LCD Tentative Specification MODEL NO.: N156B6-L02 (With Converter) Customer : Approved by : Note : 2008-05-02 PMMD 14:12:25 CST Director cs_lee( /56510/44926) Director Accept 1 / 29 Version 0.0 Doc No.: Issued Date: Apr. 08, 2008 Model No.: N156B6-L02 Tentative 1. GENERAL DESCRIPTION 1.1 OVERVIEW N156B6-L02 is a 15.6” TFT Liquid Crystal Display module with LED Backlight unit and 30 pins LVDS interface. This module supports 1366 x 768 Wide-XGA mode and can display 262,144 colors. The optimum viewing angle is at 6 o’clock direction. 1.2 Features - Thin and light weight - WXGA (1366 x 768 pixels) resolution - 3.3V...
