N156B6-L06 is TFT LCD manufactured by Chi Mei.
.DataSheet.co.kr
Doc No.: 400032631 Issued Date: Apr. 15, 2009 Model No.: N156B6-L06
Approval
TFT LCD Approval Specification
MODEL NO.: N156B6-L06
Customer : Approved by : Note : Entry Model
- 170 nits verison
2009-05-13
15:57:24
Director Accept
1 / 29
Version 2.0
Datasheet pdf
- http://..net/
.DataSheet.co.kr
Doc No.: 400032631 Issued Date: Apr. 15, 2009 Model No.: N156B6-L06
Approval

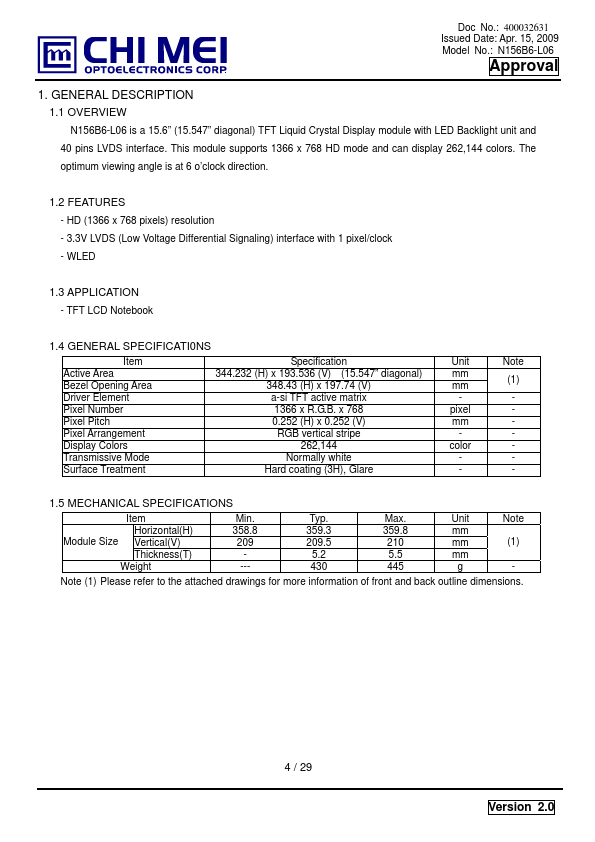

1. GENERAL DESCRIPTION
1.1 OVERVIEW N156B6-L06 is a 15.6” (15.547” diagonal) TFT Liquid Crystal Display module with LED Backlight unit and
40 pins LVDS interface. This module supports 1366 x 768 HD mode and can display 262,144 colors. The optimum viewing angle is at...
