N156B6-L07
N156B6-L07 is TFT LCD manufactured by CMI MEI.
Doc No.: 400032800 Issued Date: May. 22, 2009 Model No.: N156B6-L07
Approval
TFT LCD Approval Specification
MODEL NO.: N156B6-L07
Customer : Approved by : Note :
2009-06-12
11:10:58
Director Accept
1 / 31
Version 2.0
Doc No.: 400032800 Issued Date: May. 22, 2009 Model No.: N156B6-L07
Approval

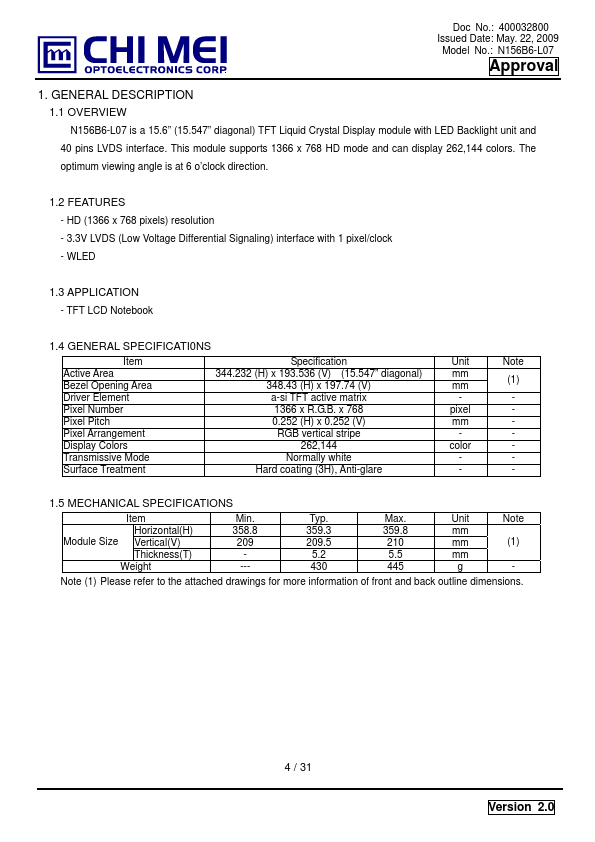

1. GENERAL DESCRIPTION
1.1 OVERVIEW N156B6-L07 is a 15.6” (15.547” diagonal) TFT Liquid Crystal Display module with LED Backlight unit and
40 pins LVDS interface. This module supports 1366 x 768 HD mode and can display 262,144 colors. The optimum viewing angle is at 6 o’clock direction.
1.2 Features
- HD (1366 x 768 pixels) resolution
- 3.3V LVDS (Low Voltage Differential...
