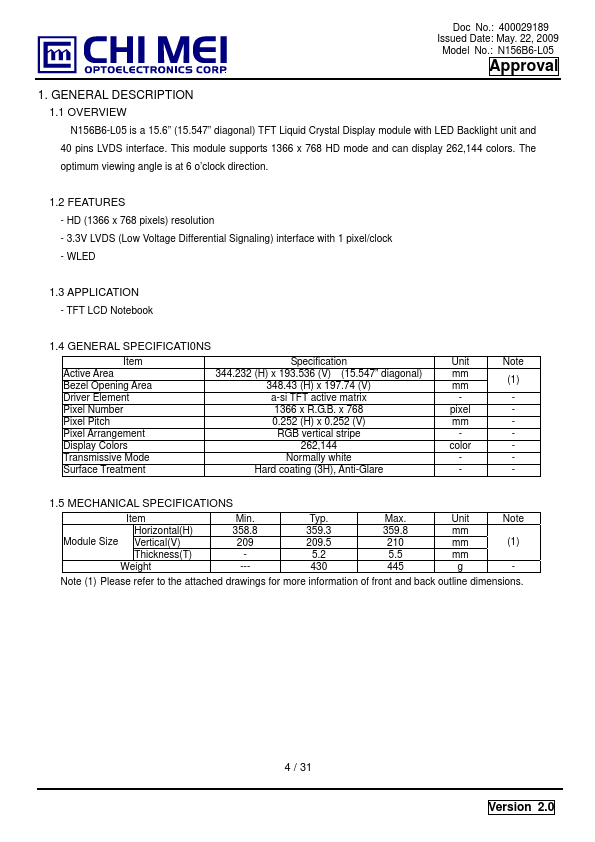

Doc No.: 400029189 Issued Date: May. 22, 2009 Model No.: N156B6-L05 Approval TFT LCD Approval Specification MODEL NO.: N156B6-L05 Customer : Approved by : Note : 2009-06-04 18:46:38 Director Accept 1 / 31 Version 2.0 Doc No.: 400029189 Issued Date: May. 22, 2009 Model No.: N156B6-L05 Approval 1. GENERAL DESCRIPTION 1.1 OVERVIEW N156B6-L05 is a 15.6” (15.547” diagonal) TFT Liquid Crystal Display module with LED Backlight unit and 40 pins LVDS interface. This module supports 1366 x 768 HD mode and can display 262,144 colors. The optimum viewing angle is at 6 o’clock direction. 1.2 Features - HD (1366 x 768 pixels) resolution - 3.3V LVDS (Low Voltage Differential...
