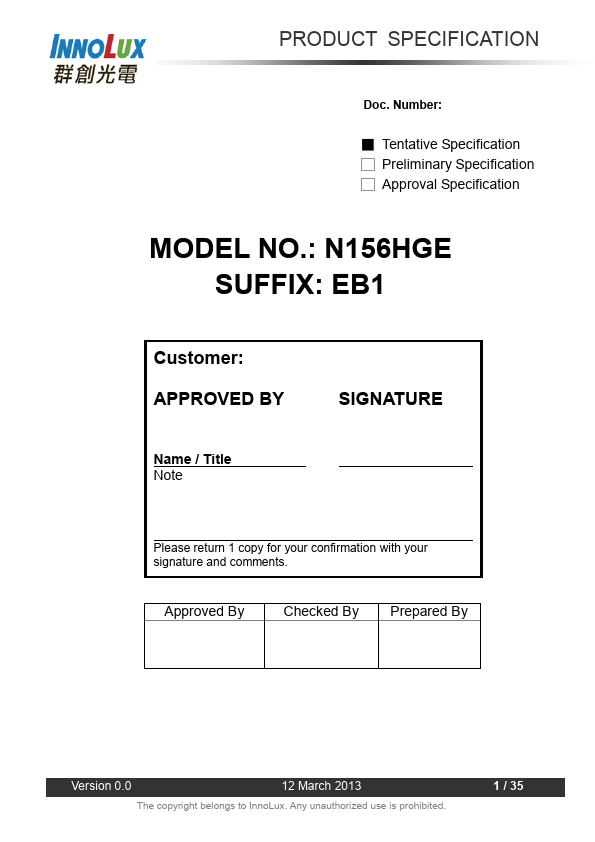

N156HGE-EB1
DESCRIPTION
1.1 OVERVIEW

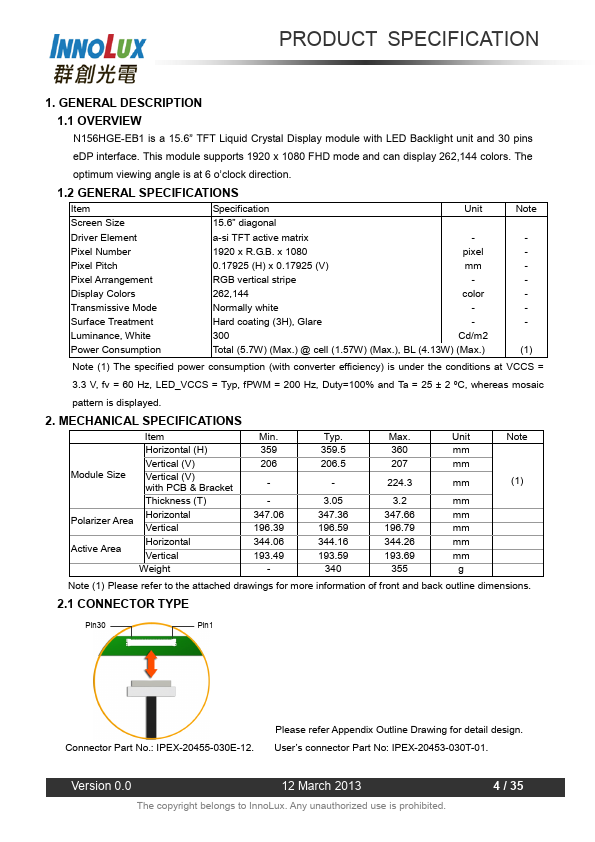

N156HGE-EB1 is a 15.6” TFT Liquid Crystal Display module with LED Backlight unit and 30 pins e DP interface. This module supports 1920 x 1080 FHD mode and can display 262,144 colors. The optimum viewing angle is at 6 o’clock direction.
1.2 GENERAL SPECIFICATIONS
Item
Specification
Unit
Screen Size
15.6” diagonal
Driver Element a-si TFT active matrix
- Pixel Number
1920 x R.G.B. x 1080 pixel
Pixel Pitch
0.17925 (H) x 0.17925 (V) mm
Pixel Arrangement
RGB vertical stripe
- Display Colors
262,144 color
Transmissive Mode
Normally white
- Surface Treatment
Hard coating (3H), Glare
- Luminance, White
Cd/m2
Power Consumption
Total (5.7W) (Max.) @ cell (1.57W) (Max.), BL (4.13W) (Max.)
Note
- (1)
Note (1) The specified power consumption (with converter efficiency) is under the conditions at VCCS =
3.3 V, fv = 60 Hz, LED_VCCS = Typ, f PWM = 200 Hz, Duty=100% and Ta = 25 ± 2 ºC, whereas mosaic pattern is displayed.

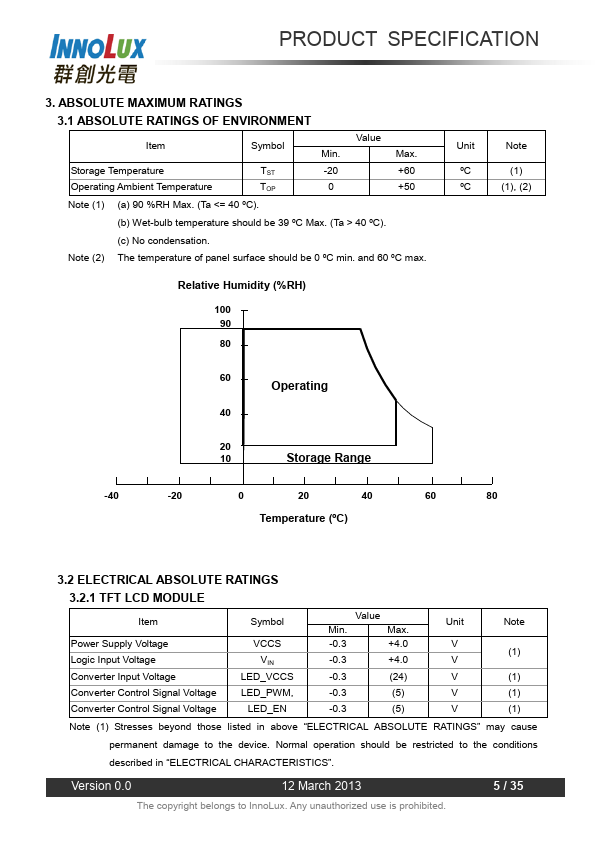

2. MECHANICAL...
