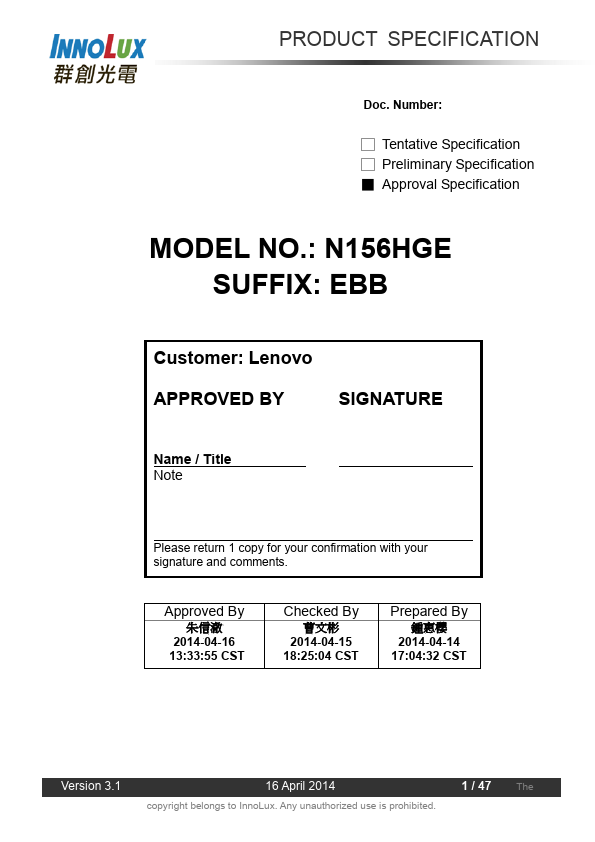

N156HGE-EBB
DESCRIPTION

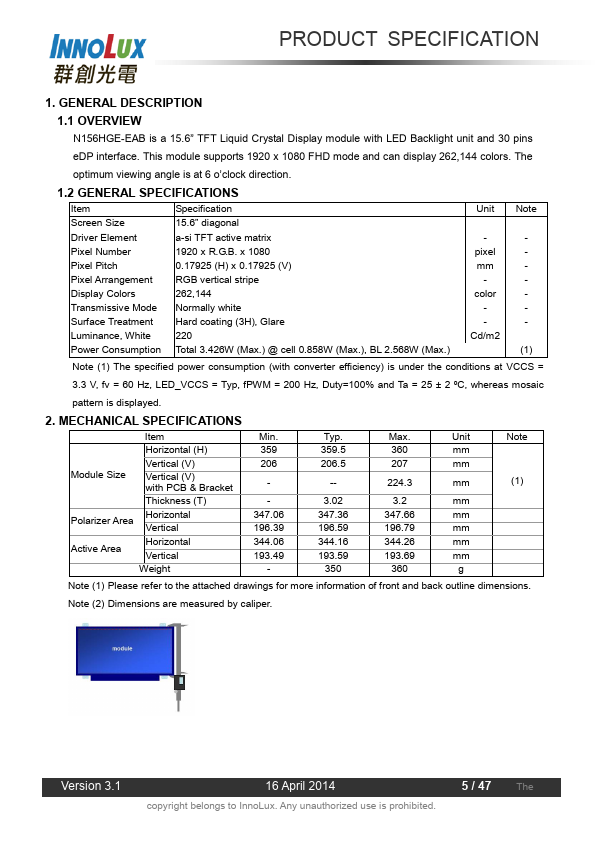

1.1 OVERVIEW
N156HGE-EAB is a 15.6” TFT Liquid Crystal Display module with LED Backlight unit and 30 pins e DP interface. This module supports 1920 x 1080 FHD mode and can display 262,144 colors. The optimum viewing angle is at 6 o’clock direction.
1.2 GENERAL SPECIFICATIONS
Item
Specification
Screen Size
15.6” diagonal
Driver Element a-si TFT active matrix
Pixel Number
1920 x R.G.B. x 1080
Pixel Pitch
0.17925 (H) x 0.17925 (V)
Pixel Arrangement RGB vertical stripe
Display Colors
262,144
Transmissive Mode Normally white
Surface Treatment Hard coating (3H), Glare
Luminance, White 220
Power Consumption Total 3.426W (Max.) @ cell 0.858W (Max.), BL 2.568W (Max.)
Unit Note
- - pixel
- mm
- -
- color
- -
- -
- Cd/m2
(1)
Note (1) The specified power consumption (with converter efficiency) is under the conditions at VCCS =
3.3 V, fv = 60 Hz, LED_VCCS = Typ, f PWM = 200 Hz, Duty=100% and Ta = 25 ± 2 ºC, whereas mosaic pattern is...
