SW6201 - Total Solution Include PD

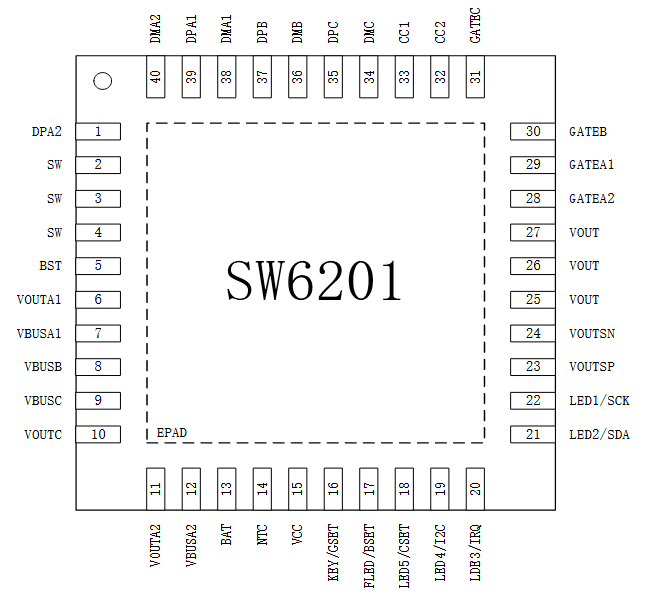

General Description

The SW6201 is a highly integrated power management IC for fast charge power bank application, and supports A+A+B+C ports.

It integrates 5A switching charger, 18W synchronous boost, PPS/PD/QC/AFC/FCP/PE/SFCP fast charge protocol, fuel gauge, segment/led driver and power controller.

Key Features

  • Switching Charger.
  • Current up to 5A , Efficiency up to 96%.
  • Support 4.2/4.35/4.4/4.5V Battery Voltage.
  • Support JEITA.
  • Thermal Regulation.
  • Synchronous Boost.
  • Power up to 18W, Efficiency up to 95%.
  • Load Insert Detect and Light Load Detect.
  • Support Wireless Charge Mode.
  • Support Small Current Charge Mode.
  • Output Fast Charge Protocol.
  • Support PPS/PD3.0/PD2.0.
  • Support QC4+/QC4/QC3.0/QC2.0.
  • Support AFC.
  • Support FCP.

📥 Download Datasheet

Datasheet Details

Part number SW6201
Manufacturer ISMARTWARE
File Size 1.32 MB
Description Total Solution Include PD
Datasheet download datasheet SW6201 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SW601Q N-Channel MOSFET SEMIPOWER
SW60N06T MOSFET SEMIPOWER
SW6100 BATTERY SUNNYWAY
SW630 N-Channel MOSFET Samwin
SW630A MOSFET SEMIPOWER

Other Datasheets by ISMARTWARE

Part Number Description
SW6206 Bidirectional Fast Charge Power Bank
SW6208 highly integrated power management
SW6236 AACC Four-Port Multi-Protocol Portable Power Bank SOC
SW6005 5V/2.4A Type-C Solution Power Bank
SW6008 5V/3.1A Type-C Solution Power Bank

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
ZHUHAI ISMARTWARE TECHNOLOGY CO., LTD. Total Solution Include PD for Bidirectional Fast Charge Power Bank 1. General Description The SW6201 is a highly integrated power management IC for fast charge power bank application, and supports A+A+B+C ports. It integrates 5A switching charger, 18W synchronous boost, PPS/PD/QC/AFC/FCP/PE/SFCP fast charge protocol, fuel gauge, segment/led driver and power controller. With simple external components, The SW6201 provides a turn-key high efficiency solution for fast charge battery management. 2. Applications • Power Bank • Battery Powered Device 3. Features • Switching Charger  Current up to 5A , Efficiency up to 96%  Support 4.2/4.35/4.4/4.
