6N135 - Optocoupler

General Description

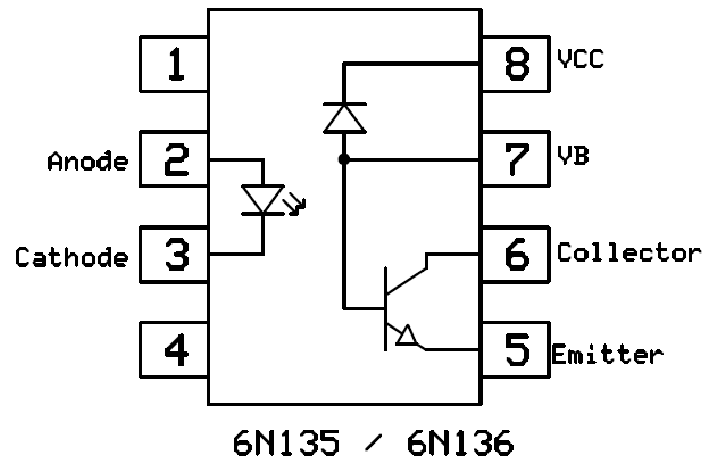

The 6N135, 6N136, ICPL4502 and ICPL4503 devices each consists of an infrared emitting diode, optically coupled to a high speed photo detector transistor.

Key Features

  • High speed 1Mbit/s.
  • High AC Isolation Voltage 5000Vrms.
  • Guaranteed performance from 0°C to 70°C.
  • Wide Operating temperature range -55°C to 100°C.
  • Pb Free and RoHS Compliant.
  • UL File E91231.
  • VDE Approval Certificate No. 40044376 for 6N135 and 6N136, with suffix “V”.

📥 Download Datasheet

Datasheet Details

Part number 6N135
Manufacturer ISOCOM
File Size 2.29 MB
Description Optocoupler
Datasheet download datasheet 6N135 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
6N135 8 PIN DIP HIGH SPEED 1Mbit/s TRANSISTOR PHOTOCOUPLER Everlight
6N135 High-Speed Optocouplers Broadcom
6N135 High Speed Optocouplers LITE-ON
6N135 High Speed Optocoupler Vishay
6N135 IRED & PHOTO-IC Toshiba Semiconductor

Other Datasheets by ISOCOM

Part Number Description
6N136 Optocoupler
6N137 Optocoupler

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
ISOCOM COMPONENTS 6N135, 6N136, ICPL4502, ICPL4503 DESCRIPTION The 6N135, 6N136, ICPL4502 and ICPL4503 devices each consists of an infrared emitting diode, optically coupled to a high speed photo detector transistor. A separate connection for the photodiode bias and output-transistor collector increases the speed by several orders of magnitude over conventional phototransistor couplers by reducing the base-collector capacitance of the input transistor. FEATURES • High speed 1Mbit/s • High AC Isolation Voltage 5000Vrms • Guaranteed performance from 0°C to 70°C • Wide Operating temperature range -55°C to 100°C • Pb Free and RoHS Compliant • UL File E91231 • VDE Approval Certificate No.
