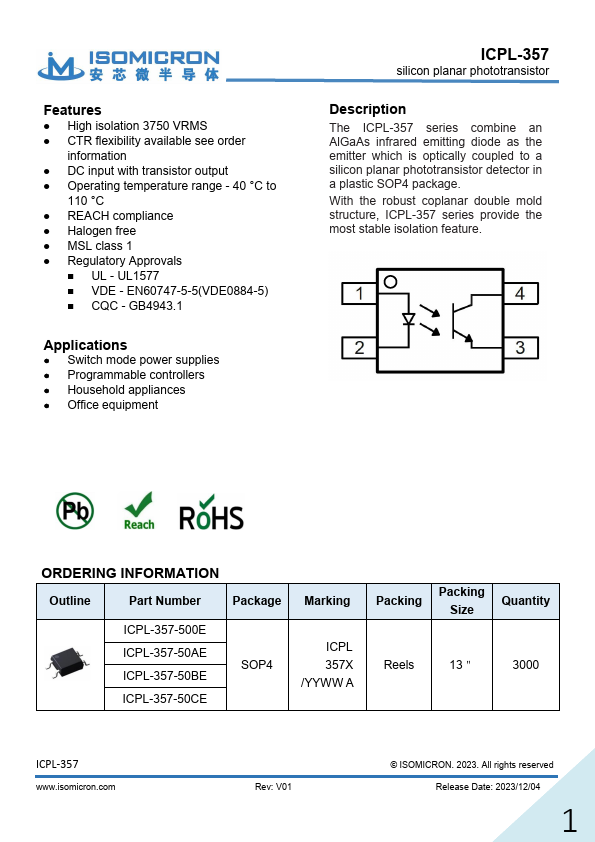

Datasheet Summary
Features
- High isolation 3750 VRMS
- CTR flexibility available see order information
- DC input with transistor output
- Operating temperature range
- 40 °C to
110 °C
- REACH pliance
- Halogen free
- MSL class 1
- Regulatory Approvals
- UL
- UL1577
- VDE
- EN60747-5-5(VDE0884-5)
- CQC
- GB4943.1
Applications
- Switch mode power supplies
- Programmable controllers
- Household appliances
- Office equipment
ICPL-357 silicon planar phototransistor
Description
The ICPL-357 series bine an AlGaAs infrared emitting diode as the emitter which is optically coupled to a silicon planar phototransistor detector in a plastic SOP4 package. With the robust coplanar double mold structure, ICPL-357...
