BSR315P - Small-Signal-Transistor

Datasheet Summary

Features

  • P-Channel.
  • Enhancement mode.
  • Logic level Product Summary VDS RDS(on),max ID.
  • Footprint and pinning compatible with SOT-23 / SuperSOT-23 packages.
  • Avalanche rated.
  • Pb-free lead finishing; RoHS compliant.
  • Qualified according to AEC Q101 -60 V 0.8 W -0.62 A SC-59 Type BSR315P Package PG-SC59 Tape and reel information L6327 = 3000 pcs. / reel Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Symbol Conditio.

📥 Download Datasheet

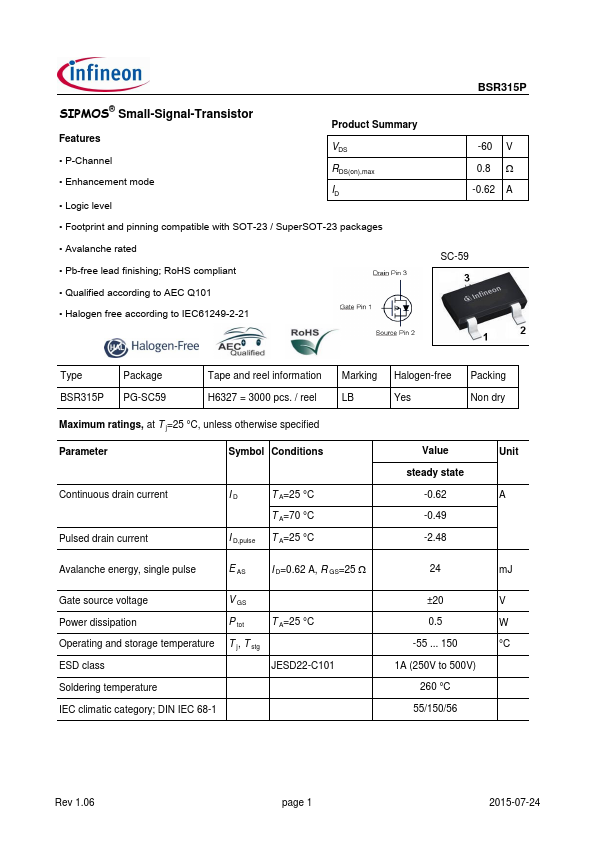

Datasheet preview – BSR315P

Datasheet Details

Part number BSR315P
Manufacturer Infineon Technologies
File Size 363.66 KB
Description Small-Signal-Transistor
Datasheet download datasheet BSR315P Datasheet

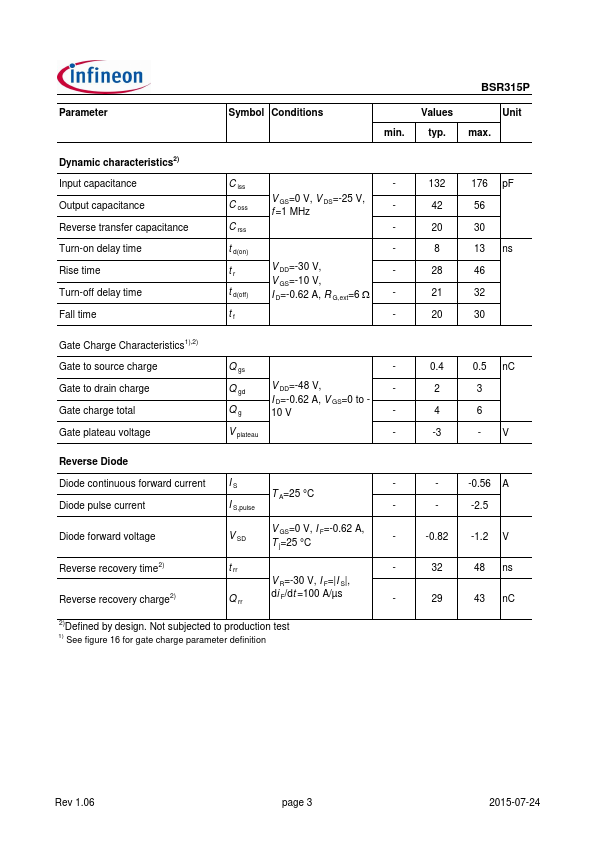

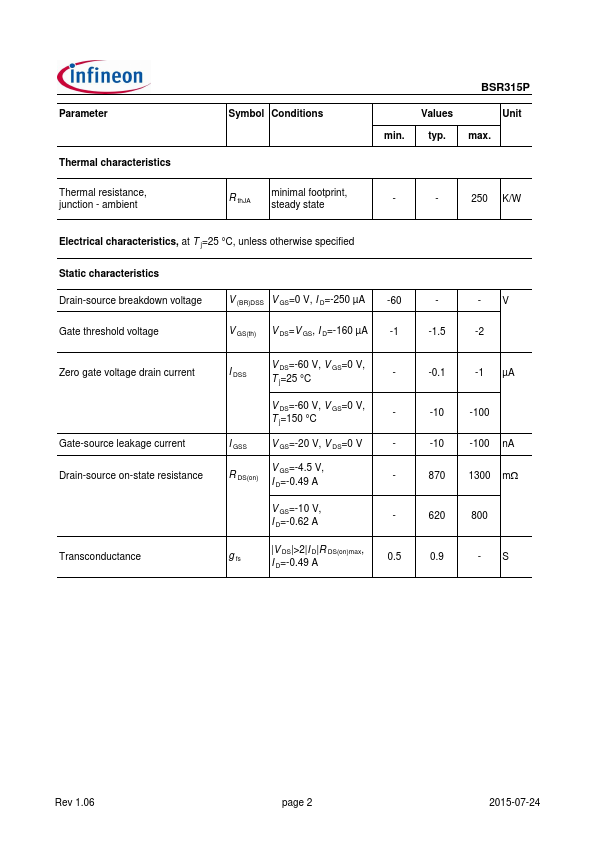

Additional preview pages of the BSR315P datasheet.

📁 Similar Datasheet

  • BSR31 - PNP medium power transistors (NXP)
  • BSR31 - PNP Medium power transistors (GME)
  • BSR31 - SMALL SIGNAL PNP TRANSISTORS (STMicroelectronics)
  • BSR31 - PNP Transistor (Kexin)
  • BSR30 - PNP medium power transistors (NXP)
  • BSR30 - PNP Medium power transistors (GME)
  • BSR30 - PNP Transistor (Kexin)
  • BSR30 - 1A PNP medium power transistor (nexperia)
  • BSR33 - PNP medium power transistors (NXP)
  • BSR33 - PNP Medium power transistors (GME)
Other Datasheets by Infineon Technologies

Full PDF Text Transcription

Click to expand full text
BSR315P SIPMOS® Small-Signal-Transistor Features • P-Channel • Enhancement mode • Logic level Product Summary VDS RDS(on),max ID • Footprint and pinning compatible with SOT-23 / SuperSOT-23 packages • Avalanche rated • Pb-free lead finishing; RoHS compliant • Qualified according to AEC Q101 -60 V 0.8 W -0.62 A SC-59 Type BSR315P Package PG-SC59 Tape and reel information L6327 = 3000 pcs. / reel Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Symbol Conditions Continuous drain current Pulsed drain current ID I D,pulse T A=25 °C T A=70 °C T A=25 °C Marking Lead free LB Yes Packing Non dry Value steady state -0.62 -0.49 -2.48 Unit A Avalanche energy, single pulse E AS I D=0.
