Infineon Technologies BAR65-02L
Silicon PIN Diode
| Part No. | BAR65-02L |
|---|---|
| Datasheet | BAR65-02L Download |
| Manufacturer |  Infineon Technologies |
| Description | Silicon PIN Diode |
| Buy | Stock & Price |
MAXIMUM RATINGS

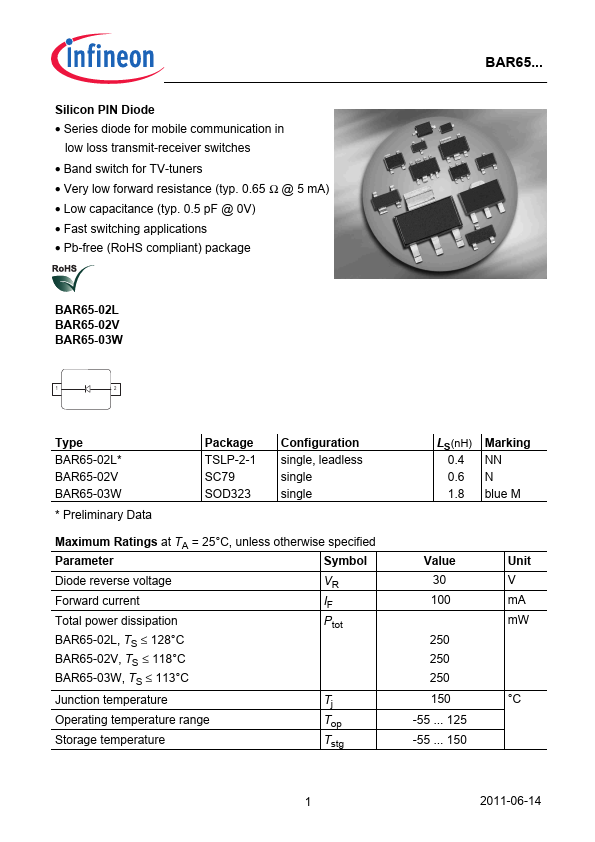

at TA = 25°C, unless otherwise specified Parameter Symbol Diode reverse voltage VR Forward current IF Total power dissipation Ptot BAR65-02L, TS ≤ 128°C BAR65-02V, TS ≤ 118°C BAR65-03W, TS ≤ 113°C Junction temperature Tj Operating temperature range Top Storage temperature Tstg LS(nH) 0.4 0.6 1.8 Marking NN N blue M Value Unit 30 V 100 mA mW 250 250 250 150 °C -55 ... 125 -55 ... 150 1 2011-06-14 BAR65... Thermal Resistance Parameter Junction - soldering point1) BAR65-02L BAR65-02V BAR65-03W Symbol RthJS Value Unit K/W ≤ 90 ≤ 130 ≤ 145ELECTRICAL CHARACTERISTICS

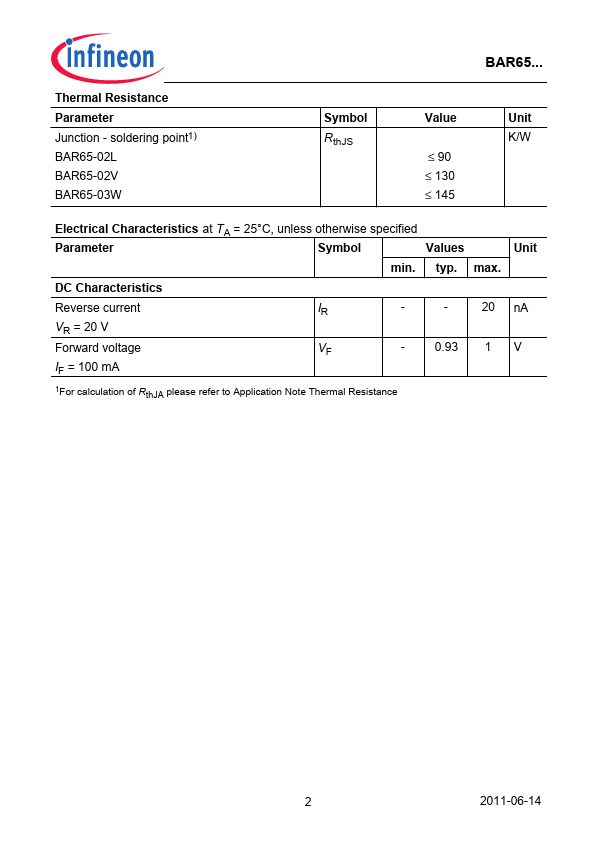

at TA = 25°C, unless otherwise specified Parameter Symbol Values Unit min. typ. max. DC Characteristics Reverse current VR = 20 V Forward voltage IF = 100 mA IR - - 20 nA VF - 0.93 1 V 1For calculation of RthJA please refer to Application Note Thermal Resistance 2 2011-06-14 BAR65...ELECTRICAL CHARACTERISTICS

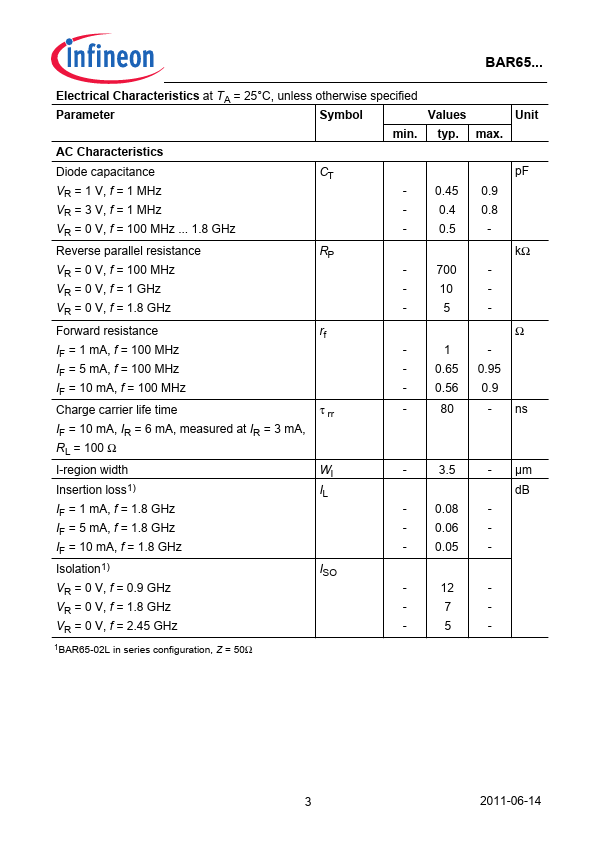

at TA = 25°C, unless otherwise specified Parameter Symbol Values Unit min. typ. max. AC Characteristics Diode capacitance VR = 1 V, f = 1 MHz VR = 3 V, f = 1 MHz VR = 0 V, f = 100 MHz ...
