BAR65-02V datasheet by Infineon.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | BAR65-02V |
|---|---|
| Datasheet | BAR65-02V BAR65-02L Datasheet (PDF) |
| File Size | 970.65 KB |
| Manufacturer | Infineon |
| Description | Silicon PIN Diode |
|
|

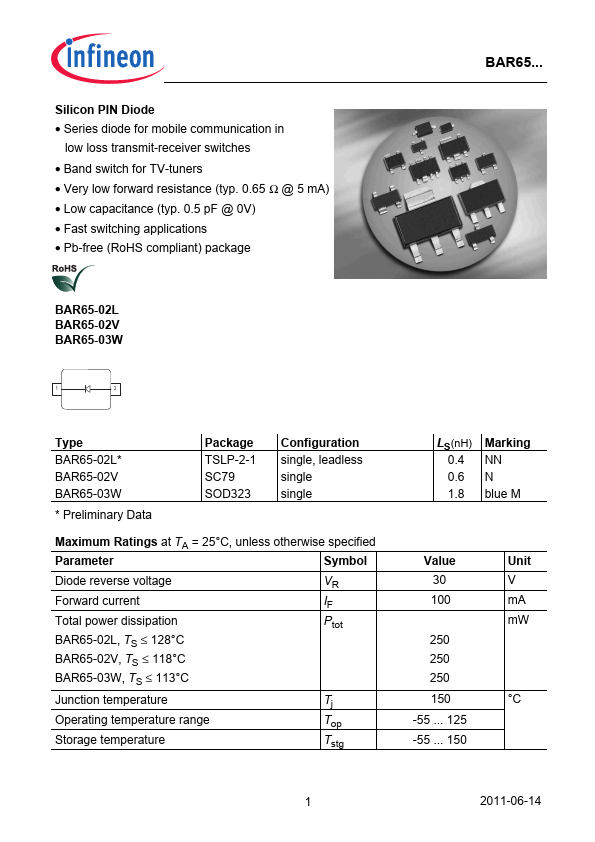

Silicon PIN Diode Series diode for mobile munication in low loss transmit-receiver switches Band switch for TV-tuners Very low forward resistance (typ. 0.65 Ω @ 5 mA) Low capacitance (typ. 0.5 pF @ 0V) Fast switching applications Pb-free (RoHS pliant) package BAR65...
