BAR65-02W
BAR65-02W is Silicon RF Switching Diode manufactured by Kexin Semiconductor.
SMD Type

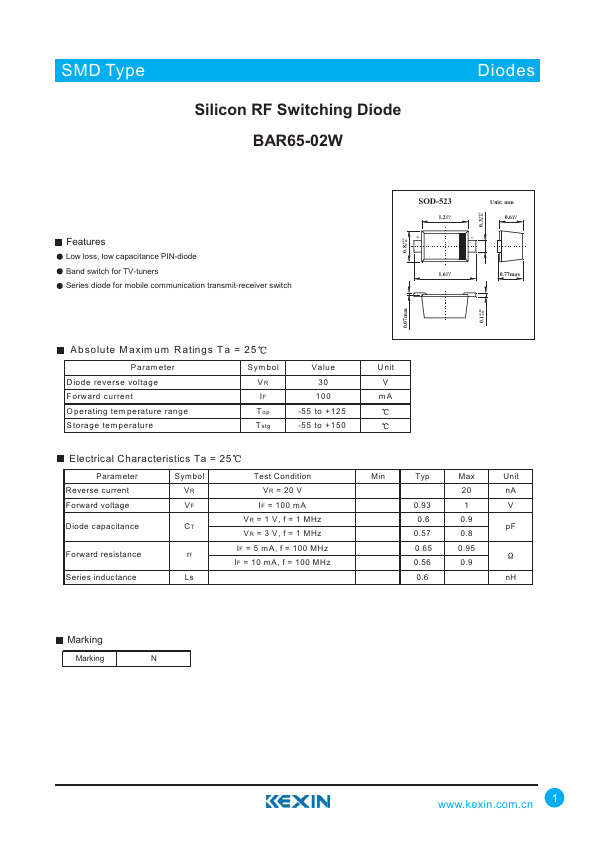

Silicon RF Switching Diode BAR65-02W
Diodes
Features
Low loss, low capacitance PIN-diode Band switch for TV-tuners Series diode for mobile munication transmit-receiver switch
+0.05 0.8 -0.05
SOD-523
1.2+0.1 -0.1
+
+0.05 0.3 -0.05
Unit: mm 0.6+0.1
-0.1
- 1.6+0.1 -0.1
0.77max
+0.05 0.1 -0.02
0.07max
Absolute M axim um Ratings Ta = 25
Param eter Diode reverse voltage Forward current Operating tem perature range Storage tem perature
Sym bol VR IF Top T stg
V a lu e 30 100
-55 to +125 -55 to +150
U n it V mA
Electrical Characteristics Ta = 25
P aram eter Reverse current Forward voltage Diode capacitance
Forward resistance Series inductance
Symbol VR VF CT rf...
