BCP51-16 Datasheet | Infineon

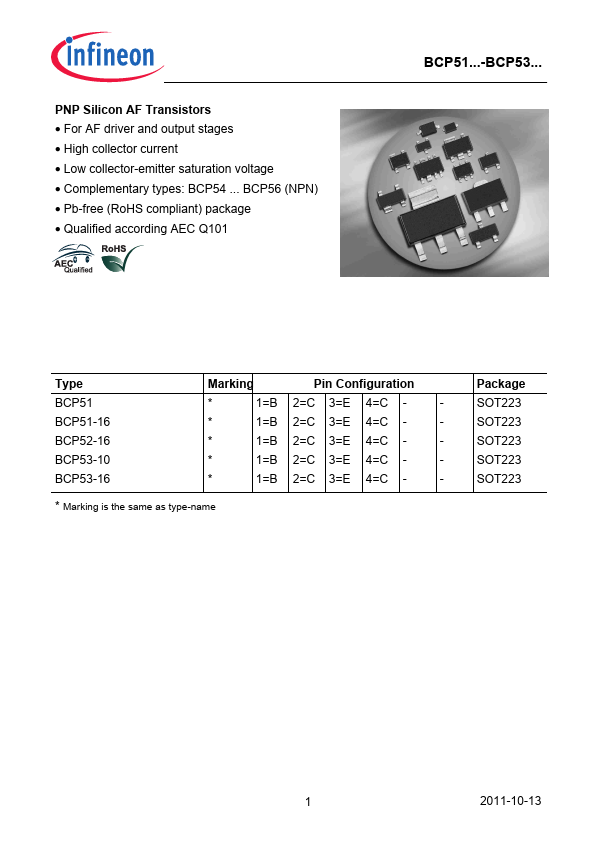

PNP Silicon AF Transistors - For AF driver and output stages - High collector current - Low collector-emitter saturation voltage - plementary types: BCP54 ... BCP56 (NPN) - Pb-free (Ro HS pliant) package - Qualified according AEC Q101 BCP51...-BCP53... Type BCP51 BCP51-16 BCP52-16 BCP53-10 BCP53-16 Marking Pin Configuration - 1=B 2=C 3=E 4=C - - - 1=B 2=C 3=E 4=C - - - 1=B 2=C 3=E 4=C - - - 1=B 2=C 3=E 4=C - - - 1=B 2=C 3=E 4=C - - - Marking is the same as type-name Package SOT223 SOT223 SOT223 SOT223 SOT223 2011-10-13 BCP51...-BCP53... Maximum Ratings Parameter Collector-emitter voltage BCP51 BCP52 BCP53 Symbol VCEO Value 45 60 80 Collector-base voltage BCP51 BCP52 BCP53 VCBO 45 60 100 Emitter-base voltage Collector current Peak collector current, tp ≤ 10 ms Base current Peak base current Total power dissipation TS ≤ 120°C VEBO Ptot Junction...
