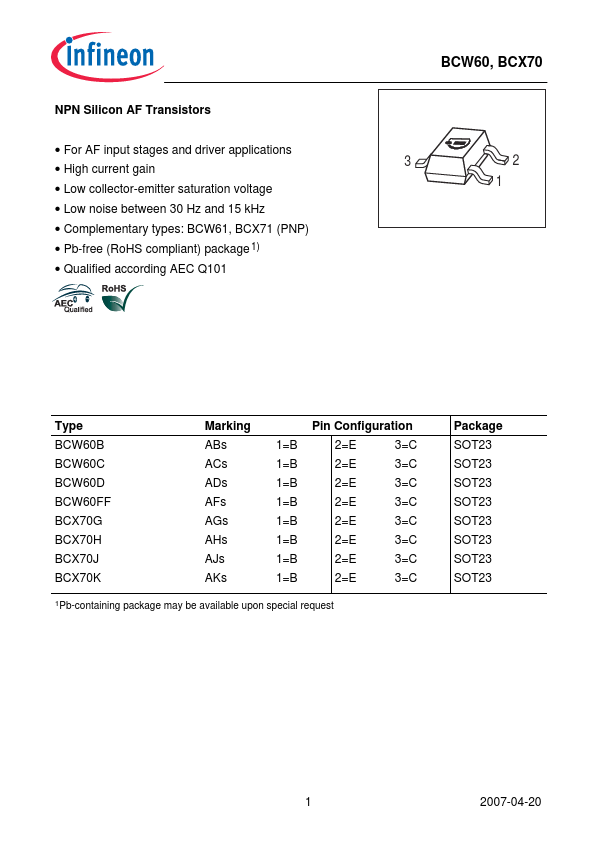

BCX70
NPN Silicon AF Transistors
- For AF input stages and driver applications
- High current gain
- Low collector-emitter saturation voltage
- Low noise between 30 Hz and 15 k Hz
- plementary types: BCW61, BCX71 (PNP)
- Pb-free (Ro HS pliant) package1)
- Qualified according AEC Q101
BCW60, BCX70
Type BCW60B BCW60C BCW60D BCW60FF BCX70G BCX70H BCX70J BCX70K
Marking ABs ACs ADs AFs AGs AHs AJs AKs
Pin Configuration
1=B
2=E
3=C
1=B
2=E
3=C
1=B
2=E
3=C
1=B
2=E
3=C
1=B
2=E
3=C
1=B
2=E
3=C
1=B
2=E
3=C
1=B
2=E
3=C
1Pb-containing package may be available upon special...
