| Part number | BCX70G |
|---|---|
| Datasheet | BCX70G BCX70 Datasheet (PDF) |
| File Size | 94.75 KB |
| Manufacturer | Infineon |
| Description | NPN Silicon AF Transistors |
|
|

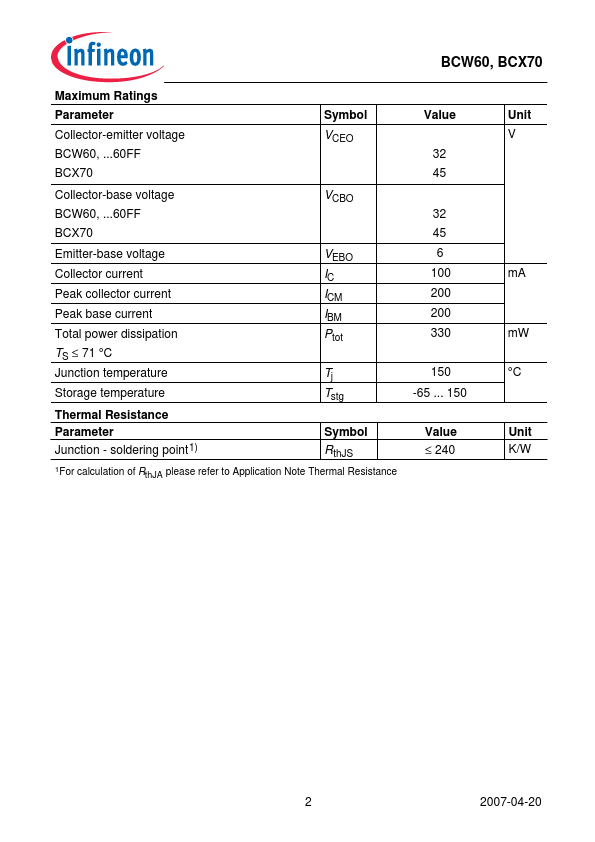

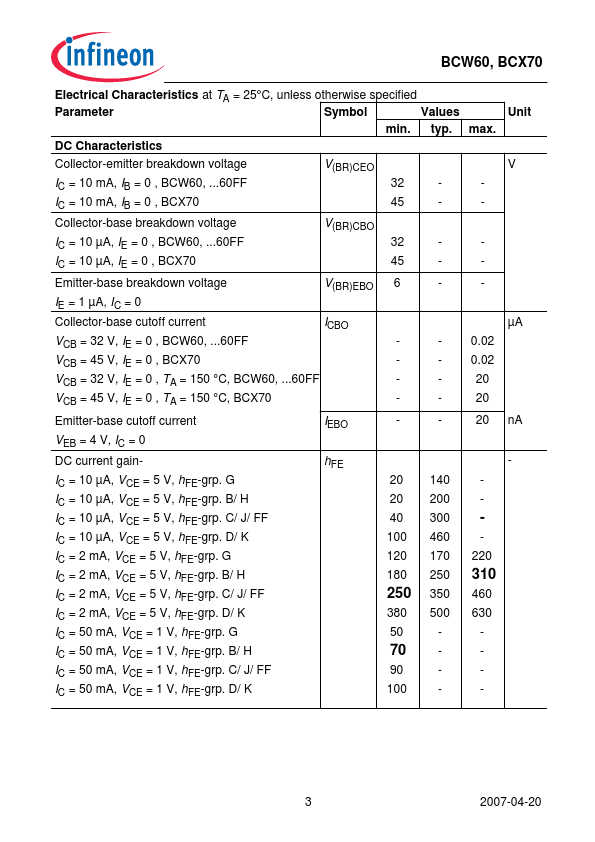

NPN Silicon AF Transistors For AF input stages and driver applications High current gain Low collector-emitter saturation voltage Low noise between 30 Hz and 15 kHz plementary types: 150 Value ≤ 240 Unit V mA mW °C Unit K/W 2 2007-04-20 BCW60, BCX70 at TA = 25°C, unless otherwise specified Parameter Symbol Values Unit min. G IC = 10 µA, VCE = 5 V, hFE-grp.
| Brand Logo | Part Number | Description | Manufacturer |
|---|---|---|---|
 |
BCX70G | NPN EPITAXIAL SILICON TRANSISTOR | Samsung semiconductor |
 |
BCX70G | NPN Epitaxial Silicon Transistor | Fairchild Semiconductor |
 |
BCX70G | NPN general purpose transistors | NXP |
