BSC340N08NS3
BSC340N08NS3 is Power-Transistor manufactured by Infineon.
- Part of the BSC340N08NS3G comparator family.
- Part of the BSC340N08NS3G comparator family.

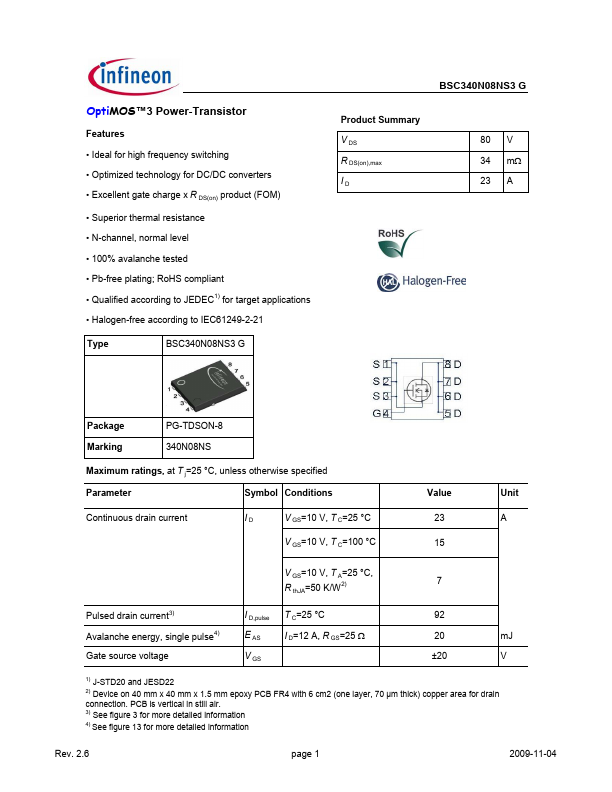

OptiMOS™3 Power-Transistor
Features
- Ideal for high frequency switching
- Optimized technology for DC/DC converters
- Excellent gate charge x R DS(on) product (FOM)
- Superior thermal resistance
- N-channel, normal level
- 100% avalanche tested
- Pb-free plating; RoHS pliant
- Qualified according to JEDEC1) for target applications
- Halogen-free according to IEC61249-2-21
Type
BSC340N08NS3 G
BSC340N08NS3 G
Product Summary V DS R DS(on),max ID
80 V 34 mΩ 23 A
Package Marking
PG-TDSON-8 340N08NS
Maximum ratings, at T j=25 °C, unless otherwise specified
Parameter
Symbol Conditions
Continuous drain current
V GS=10 V, T C=25 °C
V GS=10 V, T C=100...
