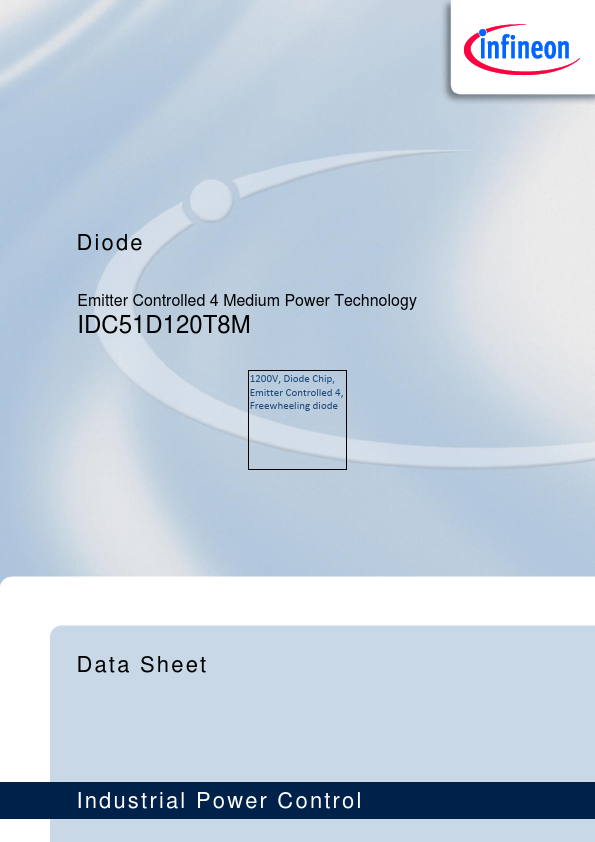

IDC51D120T8M
IDC51D120T8M is Diode manufactured by Infineon.
Diode
Emitter Controlled 4 Medium Power Technology
1200V, Diode Chip, Emitter Controlled 4, Freewheeling diode
Data Sheet
Industrial Power Control

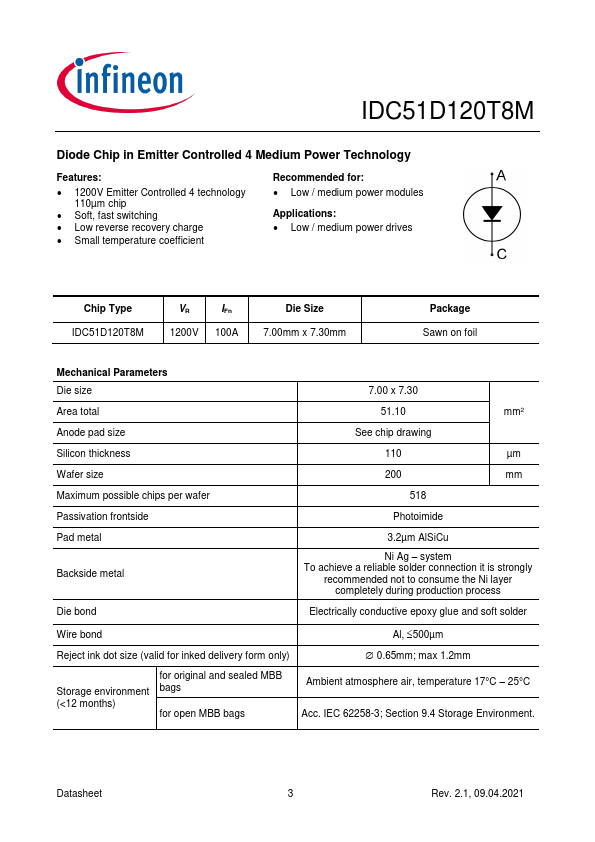

Diode Chip in Emitter Controlled 4 Medium Power Technology
Features
:
- 1200V Emitter Controlled 4 technology 110µm chip
- Soft, fast switching
- Low reverse recovery charge
- Small temperature coefficient
Remended for:
- Low / medium power modules
Applications:
- Low / medium power drives
Chip Type IDC51D120T8M
VR 1200V
IFn 100A
Die Size 7.00mm x 7.30mm
Package Sawn on foil
Mechanical Parameters Die size Area total
7.00 x 7.30 51.10 mm2
Anode pad size
See chip drawing
Silicon thickness
µm
Wafer...
