ISP1807 - Built-in Antenna Low Energy Module

General Description

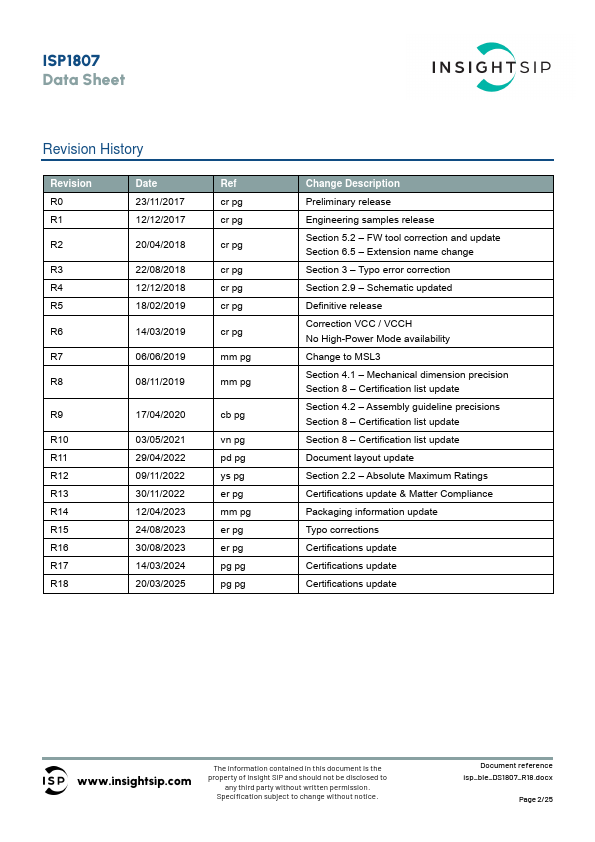

Preliminary release Engineering samples release Section 5.2 FW tool correction and update Section 6.5 Extension name change Section 3 Typo error correction Section 2.9 Schematic updated Definitive release Correction VCC / VCCH No High-Power Mode availability C

Key Features

  • 2.4GHz Ultra Low Power RF Transceiver.
  • Full Bluetooth 5.
  • long range stack ANT/ANT+ stack 2.4 GHz proprietary stack.
  • BT Mesh, Zigbee, Thread, Matter stacks available.
  • NFC-A Tag for OOB pairing.
  • PSA Certified Level 1.
  • Fully integrated RF matching and Antenna.
  • Integrated 32 MHz& 32kHZ Clock.
  • DC/DC converter with loading circuit.
  • Based on Nordic Semiconductor nRF52.
  • 32-bit ARM Cortex M4F CPU.
  • ARM CryptoCell 310.
  • 1 MB Flash / 256 k.

📥 Download Datasheet

Datasheet Details

Part number ISP1807
Manufacturer Insight SiP
File Size 1.44 MB
Description Built-in Antenna Low Energy Module
Datasheet download datasheet ISP1807 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ISP1016E High-Density Programmable Logic Lattice Semiconductor
ISP1032E High-Density Programmable Logic Lattice Semiconductor
ISP1032E High-Density Programmable Logic Lattice Semiconductor
ISP1040B Intelligent SCSI Processor QLogic Corporation
ISP1040B SCSI I/O Processor Qlogic

Other Datasheets by Insight SiP

Part Number Description
ISP1302 Lite V4.2 Bluetooth Low Energy Module
ISP1303 High Performance Bluetooth V4.2 & ANT Low Energy Module
ISP130301 Bluetooth Low Energy Module
ISP1507 High Performance Bluetooth 5 Ready Low Energy Module
ISP1510 Smart Ultra Wide Band and Bluetooth Low Energy Module

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

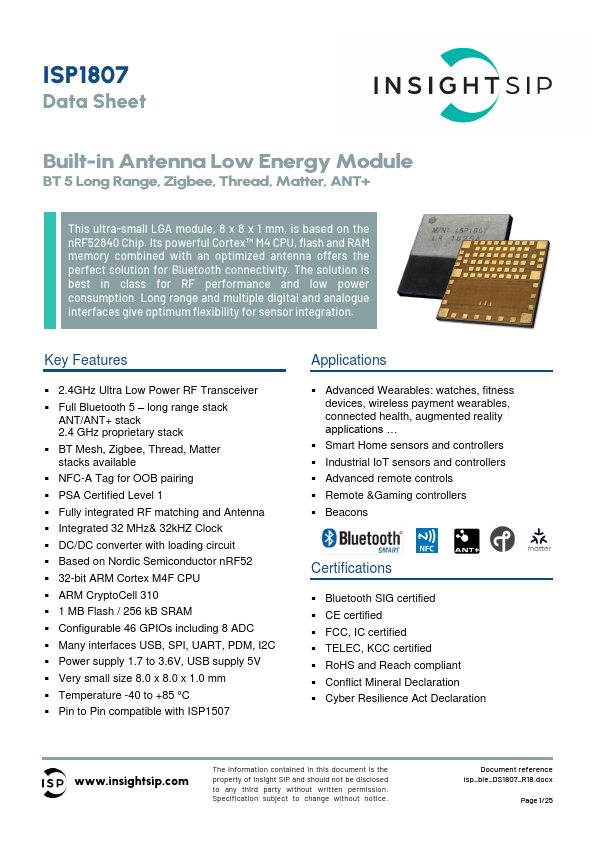

ISP1807 Data Sheet Built-in Antenna Low Energy Module BT 5 Long Range, Zigbee, Thread, Matter, ANT+ This ultra-small LGA module, 8 x 8 x 1 mm, is based on the nRF52840 Chip. Its powerful Cortex™ M4 CPU, flash and RAM memory combined with an optimized antenna offers the perfect solution for Bluetooth connectivity. The solution is best in class for RF performance and low power consumption. Long range and multiple digital and analogue interfaces give optimum flexibility for sensor integration. Key Features ▪ 2.4GHz Ultra Low Power RF Transceiver ▪ Full Bluetooth 5 – long range stack ANT/ANT+ stack 2.
