IRIS-A6351 - INTEGRATED SWITCHER

General Description

Note 1: The Pout(W) represents the thermal rating at PRC Operation, and the peak power output is obtained by approximately 120 to 150% of the above listed.

When the output voltage is low and ON-duty is narrow, the Pout(W) shall become lower than that of above.

Key Features

  • Oscillator is provided on the monolithic control IC with adopting On-ChipTrimming technology.
  • Small temperature characteristics variation by adopting a comparator to compensate for temperature on the control part.
  • Low start-up circuit current (50uA max).
  • Built-in Active Low-Pass Filter for stabilizing the operation in case of light load.
  • Avalanche energy guaranteed MOSFET with high VDSS.
  • The built-in power MOSFET simplifies the surge absor.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IRIS-A6372 Integrated Switcher IRF

Other Datasheets by International Rectifier (now Infineon)

Part Number Description
IRIS-A6359 INTEGRATED SWITCHER
IRIS-A6331 INTEGRATED SWITCHER
IRIS-A6131 INTEGRATED SWITCHER
IRIS-A6151 INTEGRATED SWITCHER
IRIS-A6159 INTEGRATED SWITCHER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

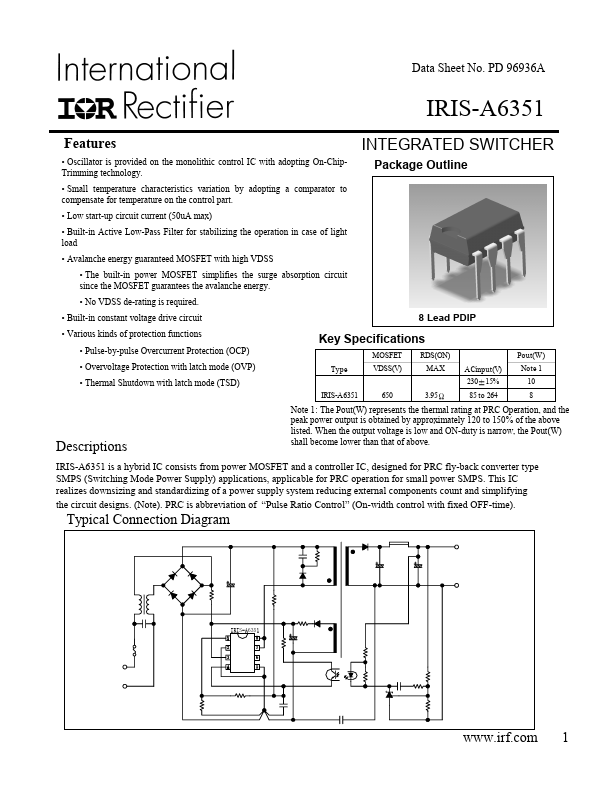

Data Sheet No. PD 96936A IRIS-A6351 Features • Oscillator is provided on the monolithic control IC with adopting On-ChipTrimming technology. • Small temperature characteristics variation by adopting a comparator to compensate for temperature on the control part. • Low start-up circuit current (50uA max) • Built-in Active Low-Pass Filter for stabilizing the operation in case of light load • Avalanche energy guaranteed MOSFET with high VDSS • The built-in power MOSFET simplifies the surge absorption circuit since the MOSFET guarantees the avalanche energy. • No VDSS de-rating is required.
