MPU-9150 - Motion Processing Unit Product Specification

General Description

20 TYPICAL OPERATING CIRCUIT21 BILL OF MATERIALS FOR EXTERNAL COMPONENTS 21 RECOMMENDED POWER-ON PROCEDURE 22 BLOCK DIAGRAM 23 OVERVIEW 23 THREE-AXIS MEMS GYROSCOPE WITH 16-BIT ADCS AND SIGNAL CONDITIONING24 THREE-AXIS MEMS ACCELEROMETER WITH 16-BIT ADCS AND SIGNAL CONDITIONING 24 THREE-AXIS MEMS MA

Key Features

  • 9 5.1 5.2 5.3 5.4 5.5 5.6.

📥 Download Datasheet

Datasheet Details

Part number MPU-9150
Manufacturer InvenSense
File Size 1.50 MB
Description Motion Processing Unit Product Specification
Datasheet download datasheet MPU-9150 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MPU-9150 Manual XESS
MPU131 (MPU131 - MPU133) Transistors Motorola
MPU132 (MPU131 - MPU133) Transistors Motorola
MPU133 (MPU131 - MPU133) Transistors Motorola
MPU150 Power Factor Correction (PFC) Power-One

Other Datasheets by InvenSense

Part Number Description
MPU-9150 Motion Processing Unit 9-Axis Evaluation Board User Guide
MPU-9150 Motion Processing Unit Register Map and Descriptions
MPU-9250 multi-chip module
MPU-9255 multi-chip module
MPU-3000 Motion Processing Unit

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

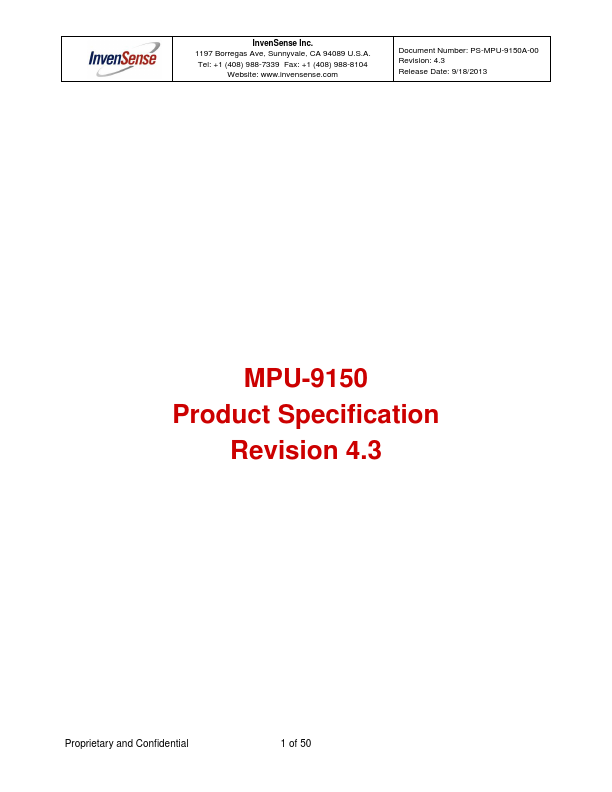

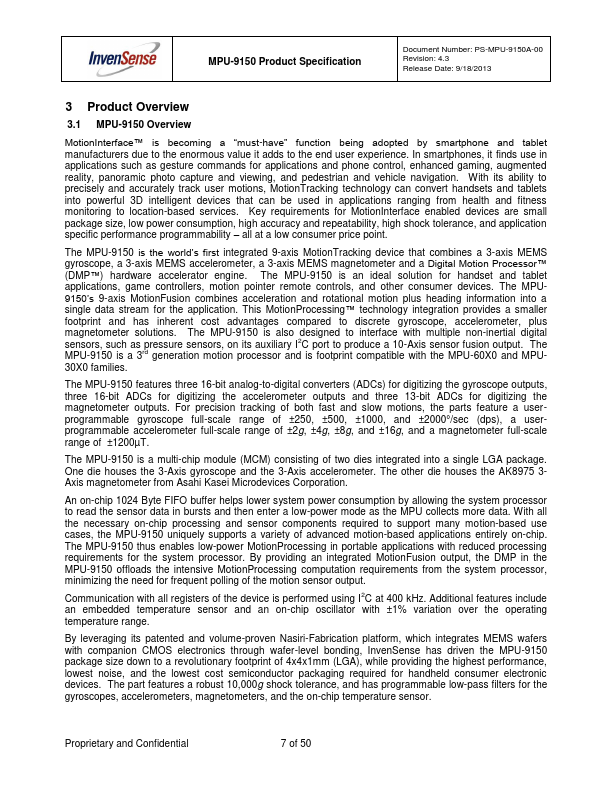

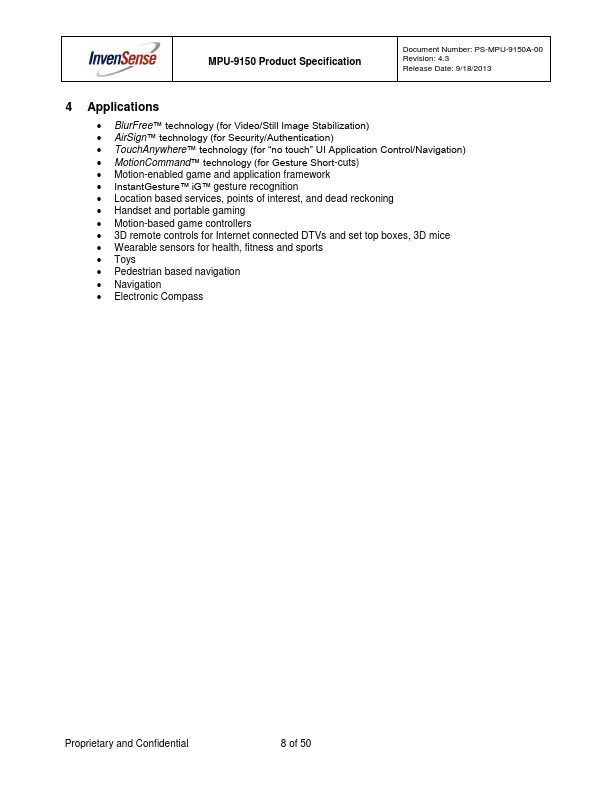

InvenSense Inc. 1197 Borregas Ave, Sunnyvale, CA 94089 U.S.A. Tel: +1 (408) 988-7339 Fax: +1 (408) 988-8104 Website: www.invensense.com Document Number: PS-MPU-9150A-00 Revision: 4.3 Release Date: 9/18/2013 MPU-9150 Product Specification Revision 4.3 Proprietary and Confidential 1 of 50 http://www.Datasheet4U.com MPU-9150 Product Specification Document Number: PS-MPU-9150A-00 Revision: 4.3 Release Date: 9/18/2013 CONTENTS 1 2 3 REVISION HISTORY ...................................................................................................................................5 PURPOSE AND SCOPE .............................................................................................................................6 PRODUCT OVERVIEW .................................................
