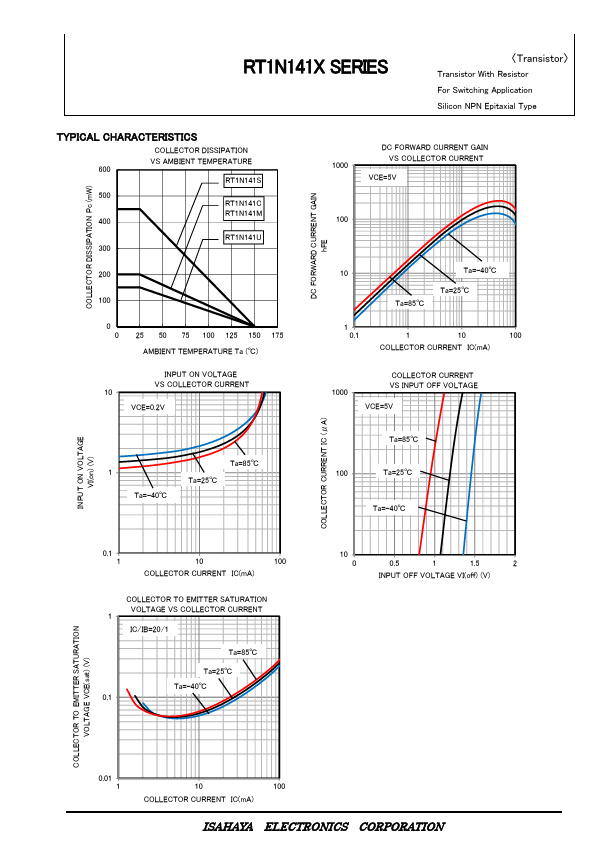

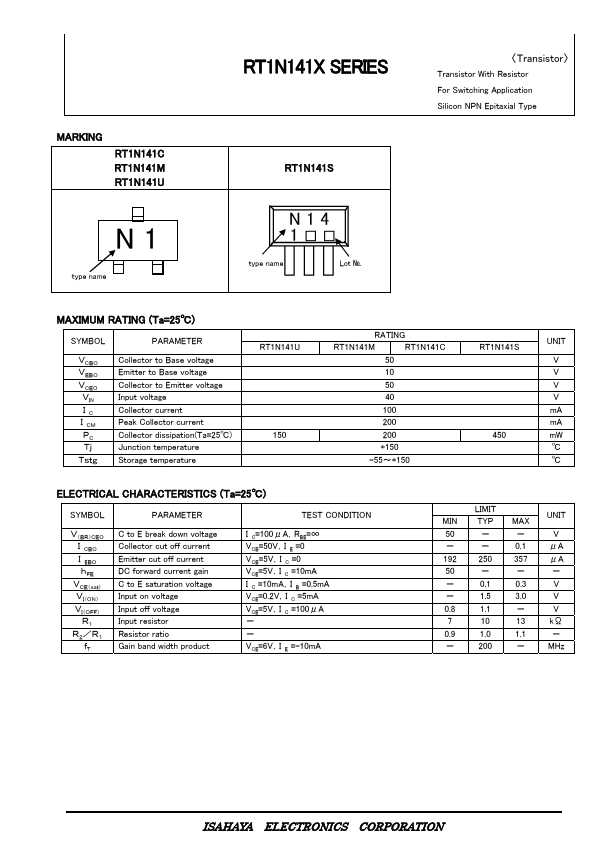

RT1N141X SERIES
DESCRIPTION
RT1N141X is a one chip transistor with built-in bias resistor,PNP type is RT1P141X.
FEATURE
- Built-in bias resistor (R1=10kΩ,R2=10kΩ).
APPLICATION
Inverted circuit,switching circuit,interface circuit,driver circuit.
2.8 1.90 0.95 0.95
〈Transistor〉
Transistor With Resistor For Switching Application Silicon NPN Epitaxial Type

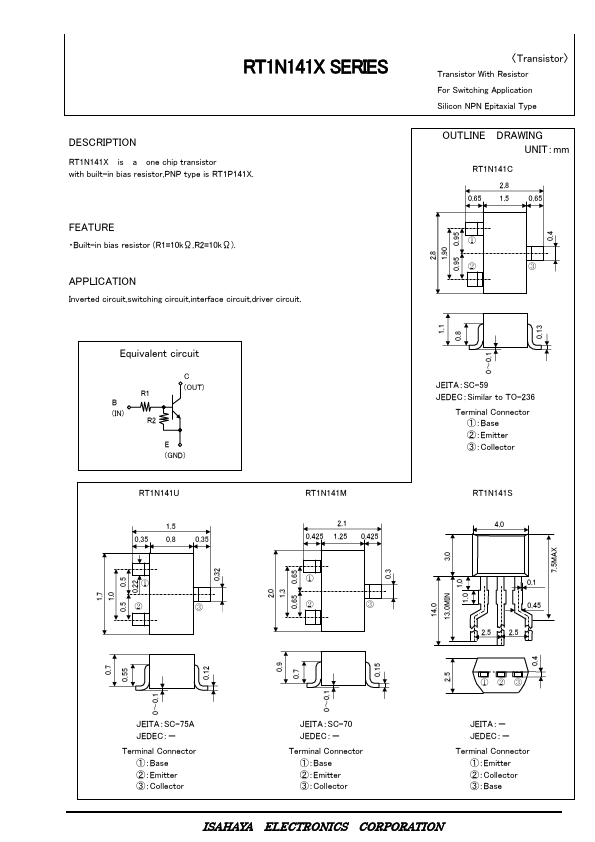

OUTLINE DRAWING UNIT：mm
RT1N141C
2.8 0.65 1.5 0.65
①
②
③
1.1 0.8 0～0.1 0.13
0.4 7.5MAX
1.7 1.0 0.5 0.5
0.22 0.32
Equivalent circuit
R1 B (IN)
R2
C (OUT)
E (GND)
1.5 0.35 0.8 0.35
①
②
③
2.0 1.3 0.65...
