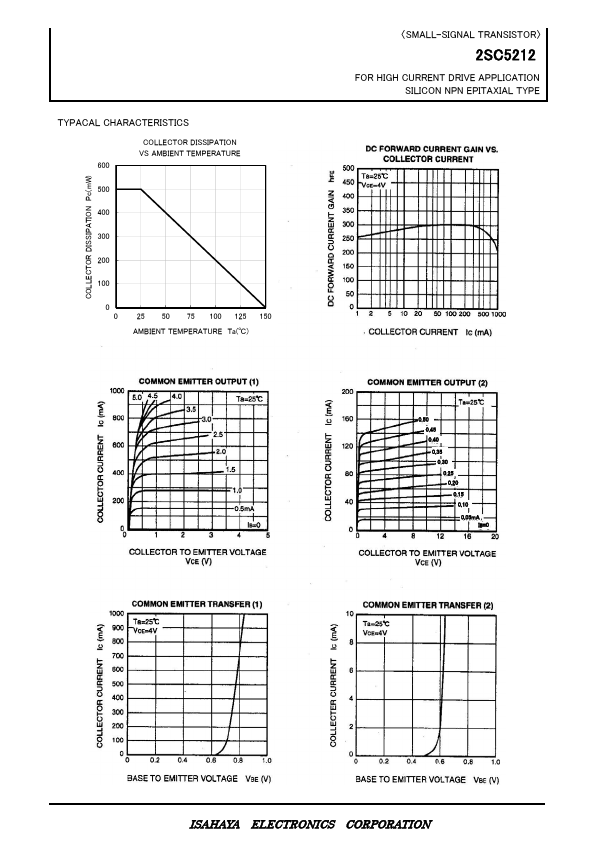

2SC5212
2SC5212 is Silicon NPN Epitaxial Type Transistor manufactured by Isahaya Electronics Corporation.
DESCRIPTION
2SC5212 is a resin sealed silicon NPN epitaxial transistor. It designed with high collector current, small VCE(sat). plementary with 2SA1946.
FEATURE
- Small package for easy mounting
- High collector current ICM=1000mA
- Low collector to emitter saturation voltage
VCE(sat)=0.2V typ
- Excellent linearity of DC forward current gain.
- High gain band with product fT=180MHz typ
APPLICATION
Small type motor drive, relay drive, power supply
〈SMALL-SIGNAL TRANSISTOR〉
FOR HIGH CURRENT DRIVE APPLICATION SILICON NPN EPITAXIAL TYPE

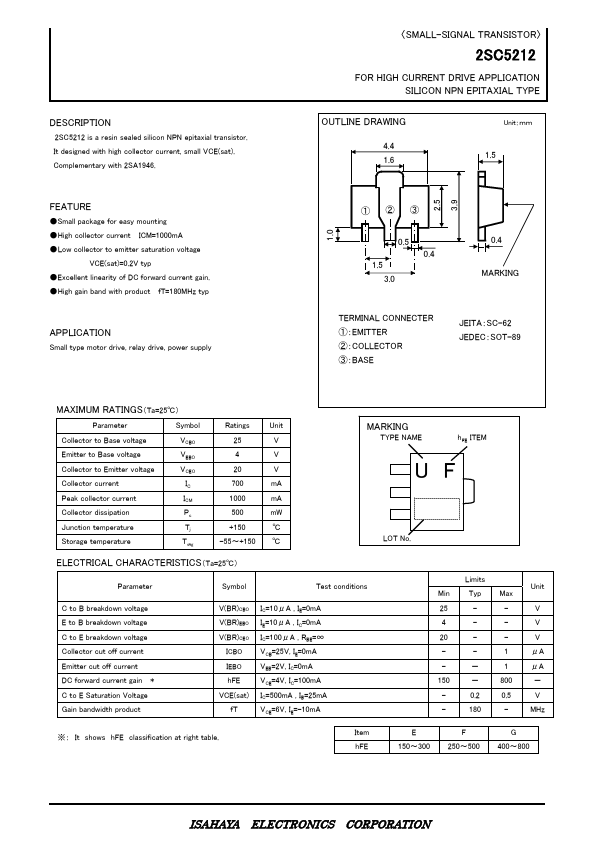

OUTLINE DRAWING
4.4 1.6
Unit：ｍｍ
1.0 2.5 3.9
①②③
0.5 0.4
1.5 3.0
0.4 MARKING
TERMINAL CONNECTER ①：EMITTER ②：COLLECTOR ③：BASE
JEITA：SC-62...
