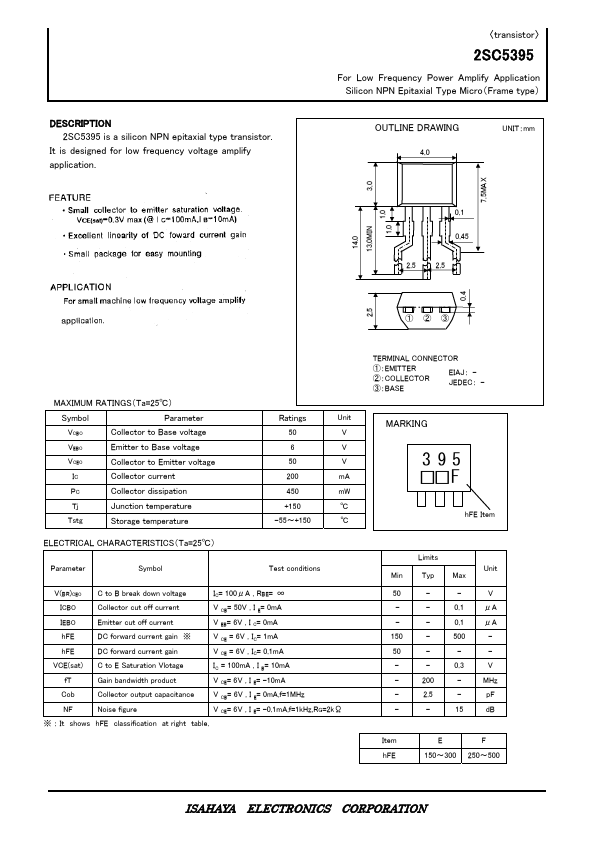

2SC5395
2SC5395 is Silicon NPN Epitaxial Type Micro transistor manufactured by Isahaya Electronics Corporation.
DESCRIPTION
2SC5395 is a silicon NPN epitaxial type transistor.
It is designed for low frequency voltage amplify application.
〈transistor〉
For Low Frequency Power Amplify Application Silicon NPN Epitaxial Type Micro（Frame type）
OUTLINE DRAWING
UNIT：mm
1.0 1.0
13.0MIN
0.1 0.45 2.5 2.5
0.4 7.5MAX
①②③
MAXIMUM RATINGS（Ta=25℃）
Symbol
Parameter
VCBO
Collector to Base voltage
VEBO
Emitter to Base voltage
VCEO
Collector to Emitter voltage
Collector current
Collector dissipation
Tj
Junction temperature
Tstg
Storage temperature
ELECTRICAL CHARACTERISTICS（Ta=25℃）
Ratings
Unit
200 m A
450 m...
