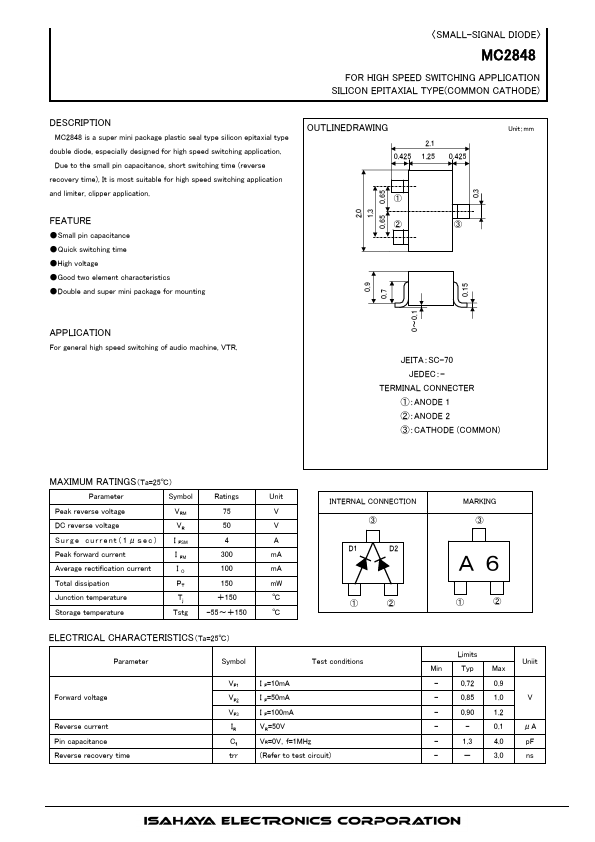

MC2848
MC2848 is Silicon Epitaxial Type Transistor manufactured by Isahaya Electronics Corporation.
DESCRIPTION
MC2848 is a super mini package plastic seal type silicon epitaxial type double diode, especially designed for high speed switching application.
Due to the small pin capacitance, short switching time (reverse recovery time), It is most suitable for high speed switching application and limiter, clipper application.
FEATURE
- Small pin capacitance
- Quick switching time
- High voltage
- Good two element characteristics
- Double and super mini package for mounting
OUTLINEDRAWING
2.1 0.425 1.25
①
②
③
2.0 1.3 0.65 0.65
Unit：mm
0.9 0.7 0～0.1 0.15
APPLICATION
For general high speed switching of audio machine, VTR.
JEITA：SC-70 JEDEC：-
TERMINAL CONNECTER ①：ANODE 1 ②：ANODE 2 ③：CATHODE (MON)
MAXIMUM RATINGS（Ta=25℃）
Parameter
Symbol
Ratings
Unit
Peak reverse voltage
DC reverse voltage
S u r g e c u r r e n t （ 1 μ ｓ e c ） I FSM
Peak forward current
I FM
300 m A
Average rectification current
100 m...
