Datasheet Details
| Part number | RT1P14HS |
|---|---|
| Manufacturer | Isahaya Electronics Corporation |
| File Size | 478.20 KB |
| Description | Silicon PNP Epitaxial Type Transistor |
| Datasheet | RT1P14HS RT1P14HC Datasheet (PDF) |
|
|
Overview: RT1P14HX SERIES.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | RT1P14HS |
|---|---|
| Manufacturer | Isahaya Electronics Corporation |
| File Size | 478.20 KB |
| Description | Silicon PNP Epitaxial Type Transistor |
| Datasheet | RT1P14HS RT1P14HC Datasheet (PDF) |
|
|
|

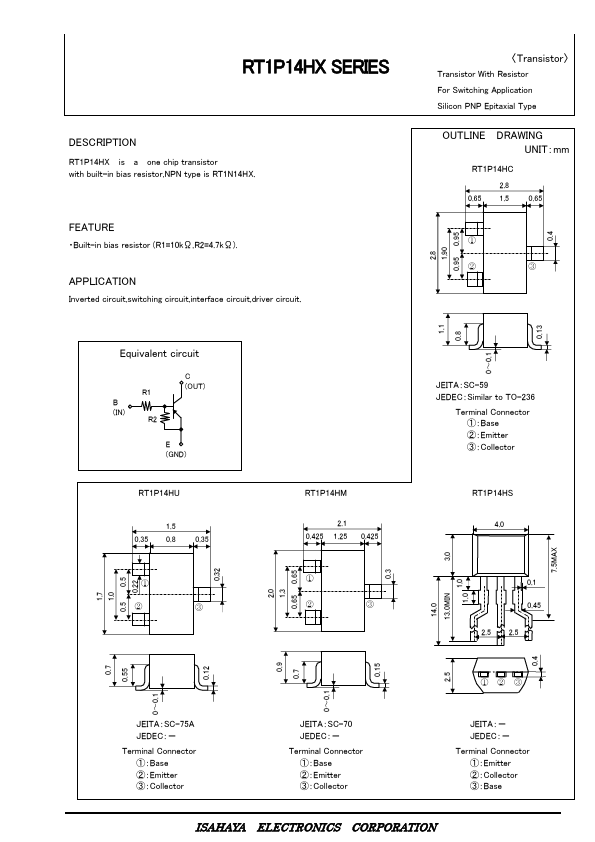

RT1P14HX is a one chip transistor with built-in bias resistor,NPN type is RT1N14HX.
| Brand Logo | Part Number | Description | Manufacturer |
|---|---|---|---|
 |
RT1P141C | Silicon PNP Epitaxial Type Transistor | Isahaya Electronics Corporation |
|
RT1P141M | Silicon PNP Epitaxial Type Transistor | Isahaya Electronics Corporation |
|
RT1P141S | Silicon PNP Epitaxial Type Transistor | Isahaya Electronics Corporation |
|
RT1P141U | Silicon PNP Epitaxial Type Transistor | Isahaya Electronics Corporation |
| Part Number | Description |
|---|---|
| RT1P14HC | Silicon PNP Epitaxial Type Transistor |
| RT1P14HM | Silicon PNP Epitaxial Type Transistor |
| RT1P14HU | Silicon PNP Epitaxial Type Transistor |
| RT1P141C | Silicon PNP Epitaxial Type Transistor |
| RT1P141M | Silicon PNP Epitaxial Type Transistor |
| RT1P141S | Silicon PNP Epitaxial Type Transistor |
| RT1P141U | Silicon PNP Epitaxial Type Transistor |
| RT1P144C | Silicon PNP Epitaxial Type Transistor |
| RT1P144M | Silicon PNP Epitaxial Type Transistor |
| RT1P144S | Silicon PNP Epitaxial Type Transistor |
