Datasheet Details
| Part number | RT1P14HU |
|---|---|
| Manufacturer | Isahaya Electronics Corporation |
| File Size | 478.20 KB |
| Description | Silicon PNP Epitaxial Type Transistor |
| Download | RT1P14HU Download (PDF) |
|
|

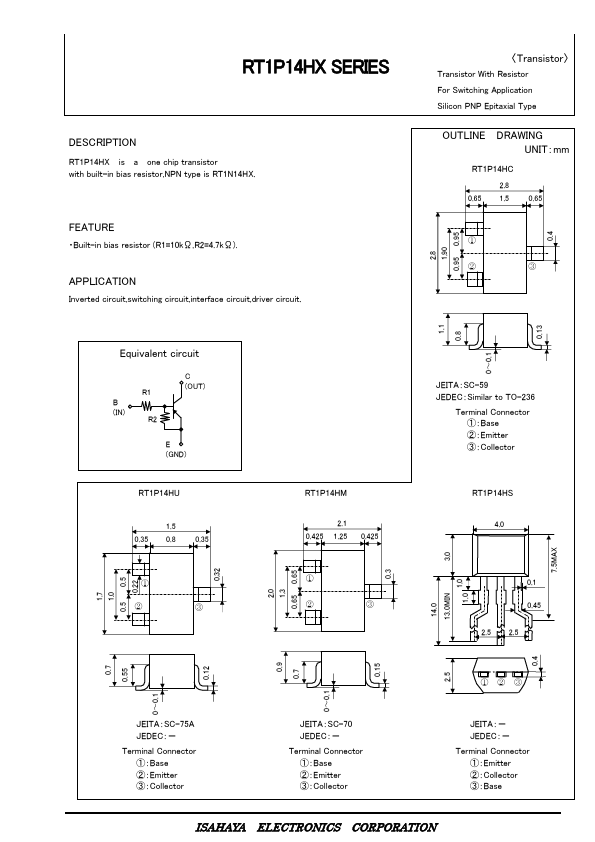

Overview: RT1P14HX SERIES.
Download the RT1P14HU datasheet PDF. This datasheet also includes the RT1P14HC variant, as both parts are published together in a single manufacturer document.
| Part number | RT1P14HU |
|---|---|
| Manufacturer | Isahaya Electronics Corporation |
| File Size | 478.20 KB |
| Description | Silicon PNP Epitaxial Type Transistor |
| Download | RT1P14HU Download (PDF) |
|
|
|
RT1P14HX is a one chip transistor with built-in bias resistor,NPN type is RT1N14HX.
